RF component for sampling signals across cellular (2G/3G/4G/5G) and Wi-Fi bands
for In-Building Systems (IBS) and Distributed Antenna Systems (DAS)

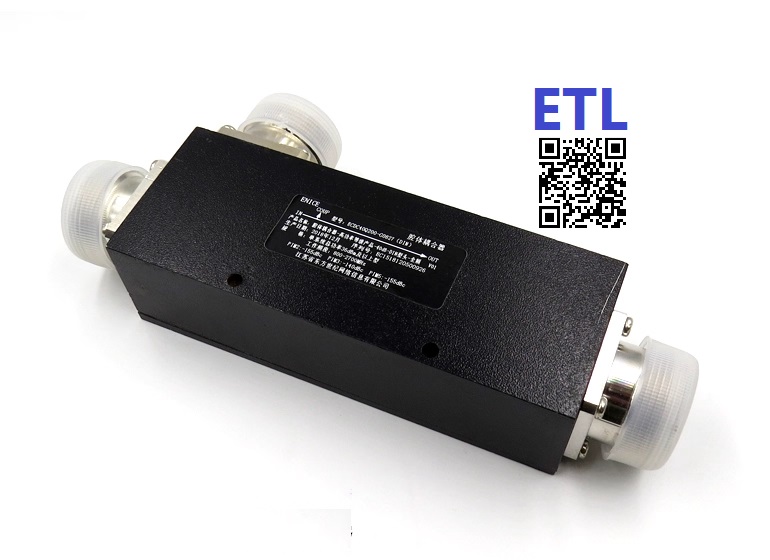

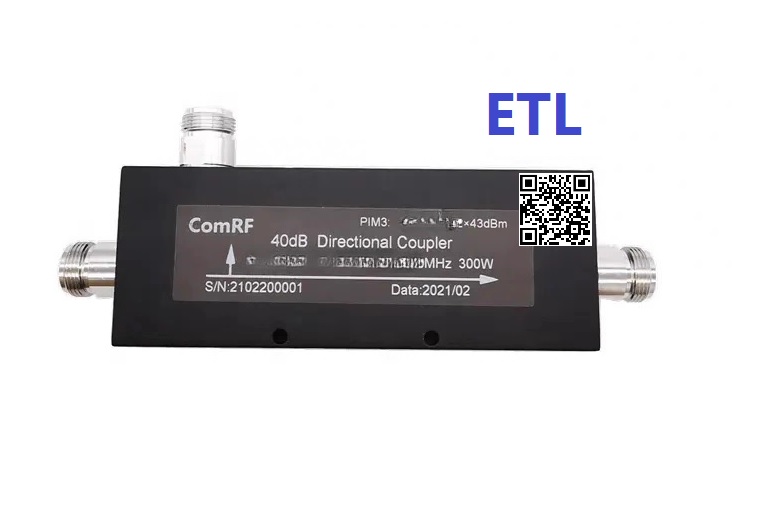

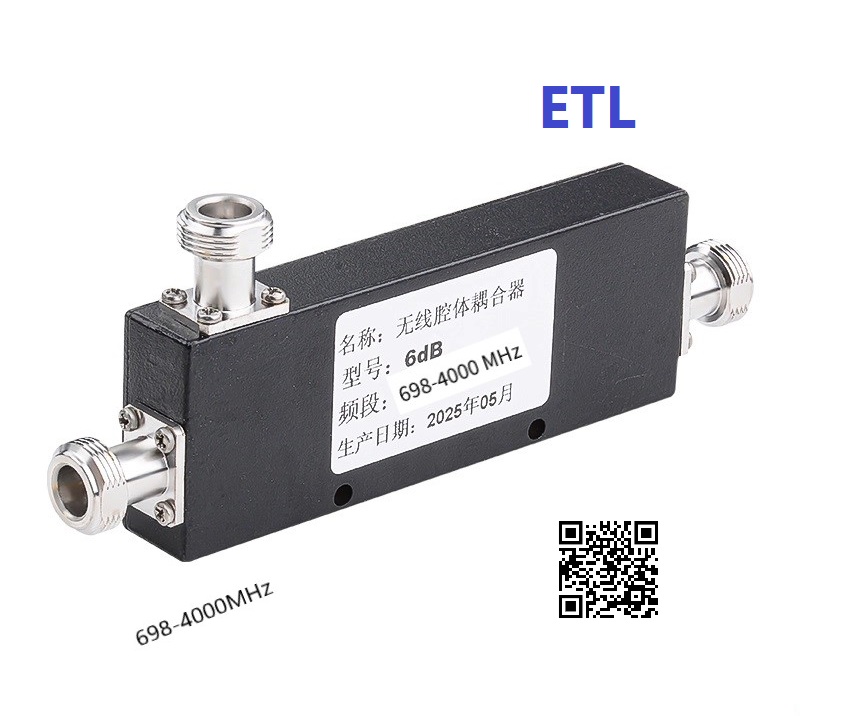

Directional Coupler 698-4000MHz 5g Directional Cavity Coupler
#5G, 698-4000MHz directional coupler, 3dB/6dB/10dB/15dB/20dB Low PIM, High Isolation, Low Insertion loss
| Item | Range | Range | Range | Range | Range | Range |
| Freq(MHz) | 698-3800/3600-4000 | |||||
| Coupling(dB) | 6 | 8 | 10 | 13/15 | 20 | 30 |
| IL (698-3600)
IL (3600-4000) |
≤1.85
≤1.95 |
≤1.6
≤1.7 |
≤1.0
≤1.1 |
≤0.9/≤0.7
≤1.0/≤0.8 |
≤0.6
≤0.7 |
≤0.6
≤0.7 |
| Accuracy(dB) | ±1.0 | ±1.0 | ±1.2 | ±1.3/±1.3 | ±1.4 | ±1.7 |
| Isolation(dB) | ≥22 | ≥23 | ≥26 | ≥28/≥30 | ≥35 | ≥43 |
| VSWR | ≤1.30 (698-3600); ≤1.35 (3600-4000) | |||||
| PIM(dBc) | ≤-155dBc@2*43dBm | |||||
| Power(W) | 300 (average) | |||||
| Impedance | 50 ohm | |||||

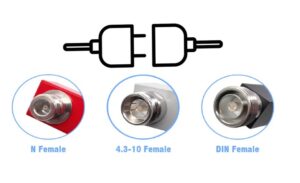

| Connector | N-Female/4.3-10/DIN | |||||
| Color | Grey or Black | |||||
| Temp(deg) | -30~+65 | |||||
| Application | Indoor &Outdoor, IP65 | |||||
