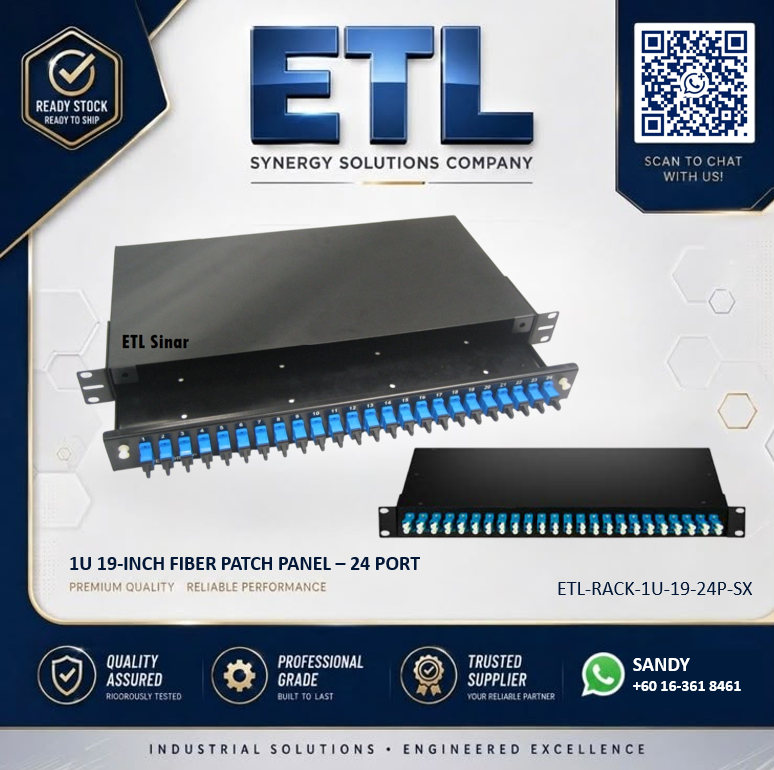

1U 19-Inch Fiber Patch Panel – 24 Port

The ETL 1U 19-inch fiber patch panel provides a compact rack-mounted solution for fiber termination, patching and fiber distribution in telecommunications and network infrastructure.

Available in 24-port configurations, the panel can be supplied with different fiber adapter configurations including SC, LC, FC and E2000, depending on project requirements.

Customers can choose between adapter-only configurations or complete sets supplied with matching single mode fiber pigtails.

Key Features & Benefits

• 1U compact rack-mounted design
• Suitable for standard 19-inch racks
• 24-port configurations
• Multiple adapter configurations
• SC, LC, FC and E2000 options
• UPC and APC options
• Adapter-only configurations available
• Complete pigtail sets available
• Suitable for single mode fiber
• Suitable for project and bulk requirements

Specifications

Applications

• Telecommunications networks
• FTTH infrastructure
• Fiber distribution
• Data communication networks
• Server rooms
• Network racks
• MDF / IDF installations
• Fiber termination
• Fiber patching
• Enterprise network infrastructure
• Telecom contractor projects

Variations

Chassis

• Chassis Only – 24 Port

SC Simplex

• 24× SC/UPC Simplex Adapter – SM
• 24× SC/UPC Simplex Adapter + 24× SM Pigtail
• 24× SC/APC Simplex Adapter – SM
• 24× SC/APC Simplex Adapter + 24× SM Pigtail

LC Duplex

• 24× LC/UPC Duplex Adapter – SM
• 24× LC/UPC Duplex Adapter + 48× SM Pigtail
• 24× LC/APC Duplex Adapter – SM
• 24× LC/APC Duplex Adapter + 48× SM Pigtail

FC Simplex

• 24× FC/UPC Simplex Adapter – SM
• 24× FC/UPC Simplex Adapter + 24× SM Pigtail

E2000 Simplex

• 24× E2000/APC Simplex Adapter – SM
• 24× E2000/APC Simplex Adapter + 24× SM Pigtail

Simplex vs Duplex Adapter

Simplex adapter:
One adapter position accommodates one fiber connection.

Duplex adapter:
One adapter position accommodates two fiber connections.

Therefore:

24-port panel + SC Simplex = 24 fiber connections

while:

24-port panel + LC Duplex = 48 fiber connections

Fiber Patch Panel with Pigtail Set

For customers requiring a ready-to-install fiber termination solution, selected configurations are available with single mode fiber pigtails matched to the selected adapter type.

Examples:

• 24 × SC Simplex + 24 × SM Pigtail
• 24 × LC Duplex + 48 × SM Pigtail

#FiberPatchPanel #1U #19Rack #ODF #48Fiber #LCDuplex #OS2 #Singlemode #NetworkRack #DataCenter #FiberOptic #ReadyStock #Telecommunication #ETL #ServerRoom
