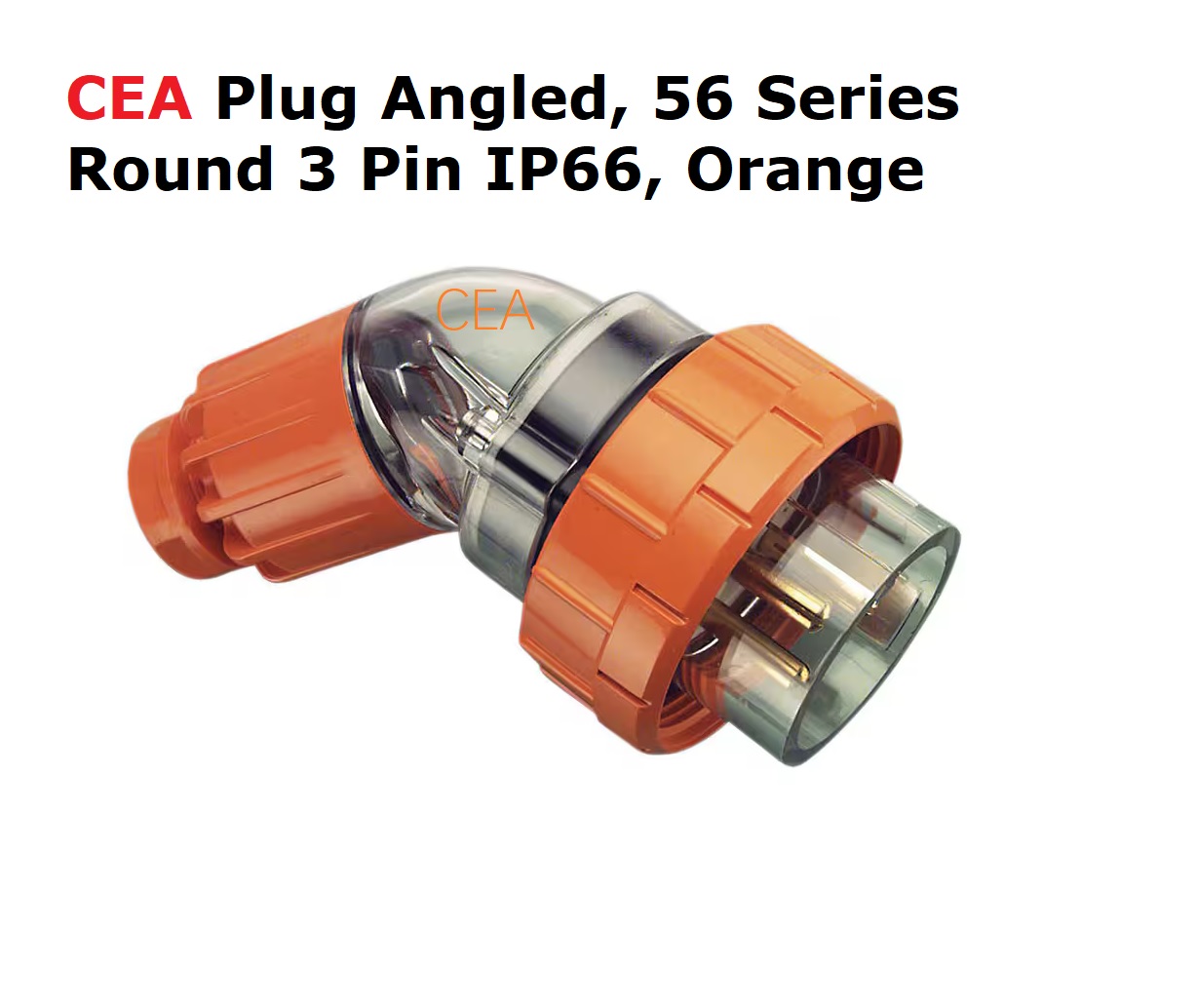

ANGLE PLUG 56 SERIAL IP66 3PHASE 500V INDUSTRIAL ORANGE 3PIN

250V Plugs

The 56 series single plugs are available in 10A,15,20A and 32A pin configurations to suit the Australian and New Zealand markets and in the british13A square pin configuration.All plugs arc IP67 rated.

Item No.	(Angled) (Straight)		56P310	56P315	56P313	56P320 56PA320	56P332 56PA332
Rated Operational Voltage Ue(-50Hz)		Volts	250	250	250	250	250
Max.Thermal Current Enclosed		Amps	10	15	13	20	20
Number of Pins (including Earth)			3	3	3	3	3
Pin Configuration
Cable Entry Diameter		Min Max	6 9	8 11	6 10	7 16	10 27
Capacity mm²		Min Max	0.75 1.5	1.0 1.5	0.75 1.5	1 6	2 5

500V Plugs

The plugs are all rated IP66 when fitted to a 56 series cord connector or socket outlet.The body section is transparent for quick and easy inspection of the terminals and cable entry.Plugs arc available with 4 to 7 pins 16A to 50A to cover most applications.

Item No.	(Angled) (Straight)		56P 416 56PA 416	56P 416K 56PA 416K	56P 420 56PA 420	56P 432 56PA 432	56P 432RF 56PA 432RF	56P 435 56PA 435	56P 440 56PA 440	56P 450 56PA 450	56P 516 56PA 516
Rated Operational Voltage Ue(-50Hz)		Volts	500	500	500	500	500	500	500	500	500
Max.Thermal Current Enclosed		Amps	16	16	20	32	32	35	40	50	16
Number of Pins (including Earth)			4	4	4	4	4	4	4	4	5
Pin Configuration
Cable Entry Diameter		Min Max	7 16	7 16	7 16	10 27	10 27	10 27	10 27	10 27	7 16
Terminal Capacity mm² Auxiliary Pins C1-C2		Min Max	1 6	1 6	1 6	2.5 16	2.5 16	2.5 16	2.5 16	4 16	1 6
Maximum Current

Item No.	(Angled) (Straight)		56P 520 56PA 520	56P 532 56PA 532	56P 535 56PA 535	56P 540 56PA 540	56P 550 56PA 550	56P 616 56PA 616	56P 716 56PA 716	56P 720 56PA 720
Rated Operational Voltage Ue(-50Hz)		Volts	500	500	500	500	500	500	500	500
Max.Thermal Current Enclosed		Amps	20	32	35	40	50	20	20	20
Number of Pins (including Earth)			5	5	5	5	5	6	7	7
Pin Configuration
Cable Entry Diameter		Min Max	7 16	10 27	10 27	10 27	10 27	7 16	7 16	7 16
Terminal Capacity mm² Auxiliary Pins C1-C2		Min Max	1 6	2.5 1.6	2.5 1.6	2.5 16	4 6	1 6	1 6	1 6
Maximum Current								10A	10A	10A
