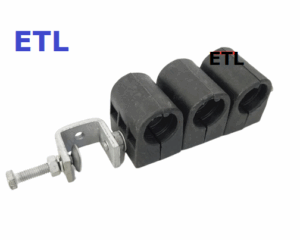

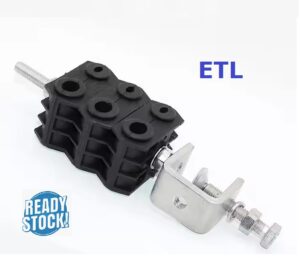

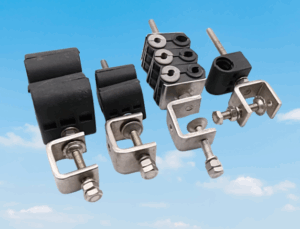

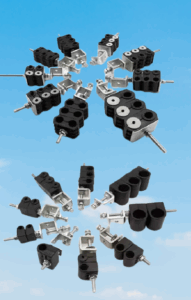

Feeder Clamp for feeder cable CPRI Power wire to RRU
RM8.80
Out of stock
Description
Feeder cable clamps are made of UV resistant material. The design offers strongest grip to manage cable system. .The material of feeder cable clamp is high standard stainless steel and high quality PP/ABS.
Technical parameters
| Item Name | Feeder Cable Clamp |
| Model | ETL-RF-Clamp-1/2-6way
ETL-RF-Clamp- 7/8-3way |
| Clamp Type | Through Type |
| Plastic Material | Polypropylene (PP) / ABS/Nylon |
| Metal Material | Clad Stainless Steel |
| Clamp Stack | Single, Double, Triple, Fourfold Stack |
| Suitable feeder Cable | 1/4″, 3/8″,#1/2″, #7/8″, 1-1/4″, #1-5/8″, 2-1/4 Feeder, DC power cable |
| Suitable Cable Model | #RG8, RG213, #LMR400 Coaxial Cable |
Cable Installation Accessories,Cable #Fixing #Feeder #Clamp,#3 Runs,C Type Bracket,for #7/8 RRU
Cable Installation Accessories,Cable #Fixing #Feeder #Clamp,#6 Runs(2x3 stacks),C Type Bracket,for Optical Cable + 3.3/4/6/8.3mm^2 #RRU #Power Cable #1/2 #CPRI #power #fiber
