Indoor Multimode Distribution Tight Buffer Fiber Optical Cable Nomber core 6-12core
MPM : ETL-MM50-6/12core
MPM : ETL-MM62.5-6/12core
Application & Feature:
– Excellent flame-retardant or PVC performance for indoor us
Used in transmission equipment, exchange equipment, and other equipment in digital process communication and transmission networks as optical transmission line.
| Cable Type | Uni Loose Tube | Fiber Count | 6-12 Fibers |

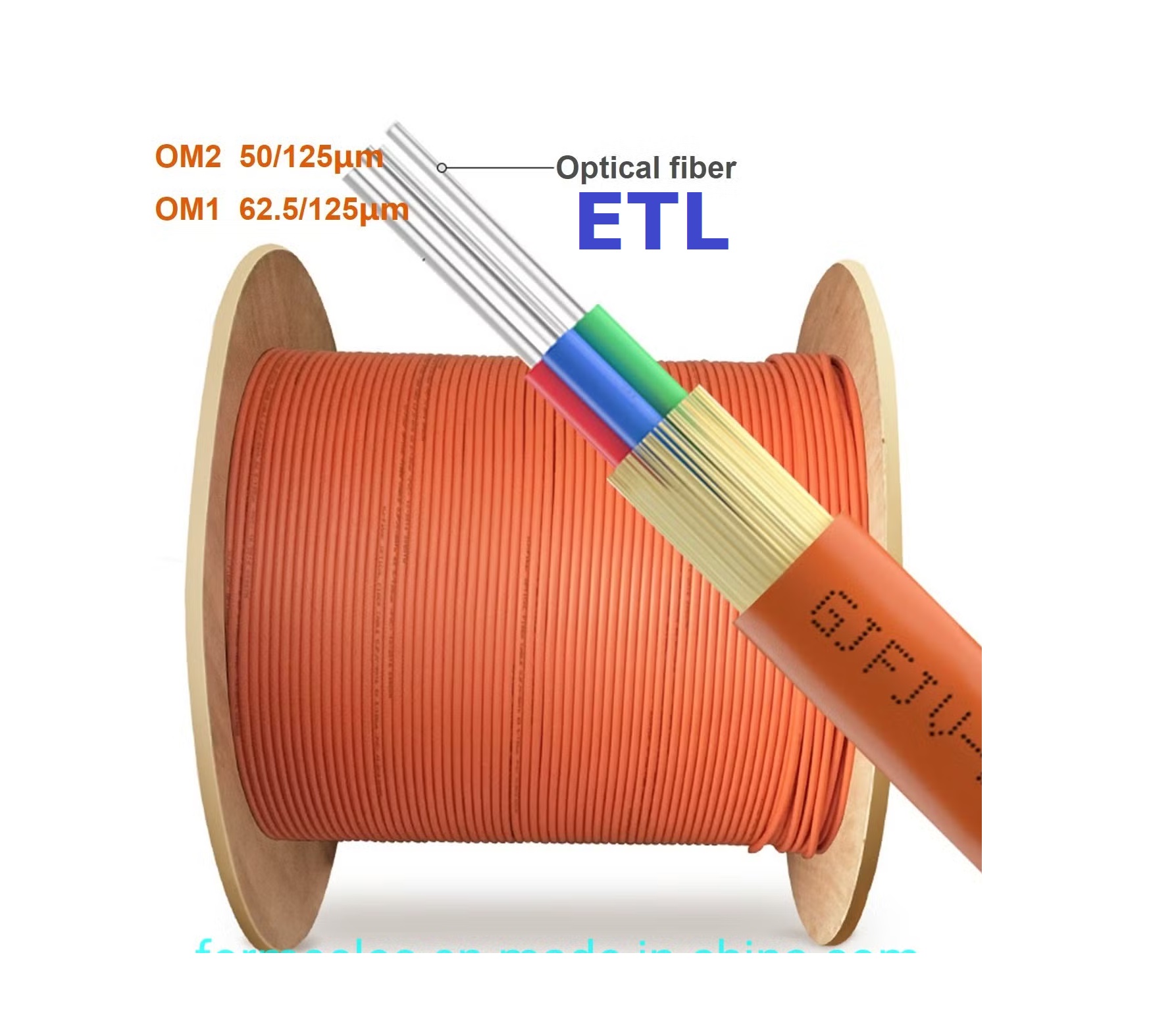

| Outer Jacket | LSZH (Orange) | Fiber Type | Multimode 62.5/125 OM1
Multimode 50/125 OM2
|
| Cable Diameter | 6.0mm | Cable Weight | 45kg/km |
| Tensile Strength (long/short term) | 200/600N | Crush Load (long/short term) | 200/1000 (N/100mm) |
| Bending Radius (long/short term) | 10D/20D (mm) | Operating/Storage Temperature | -40 to +75°C/-20 to +60°C |

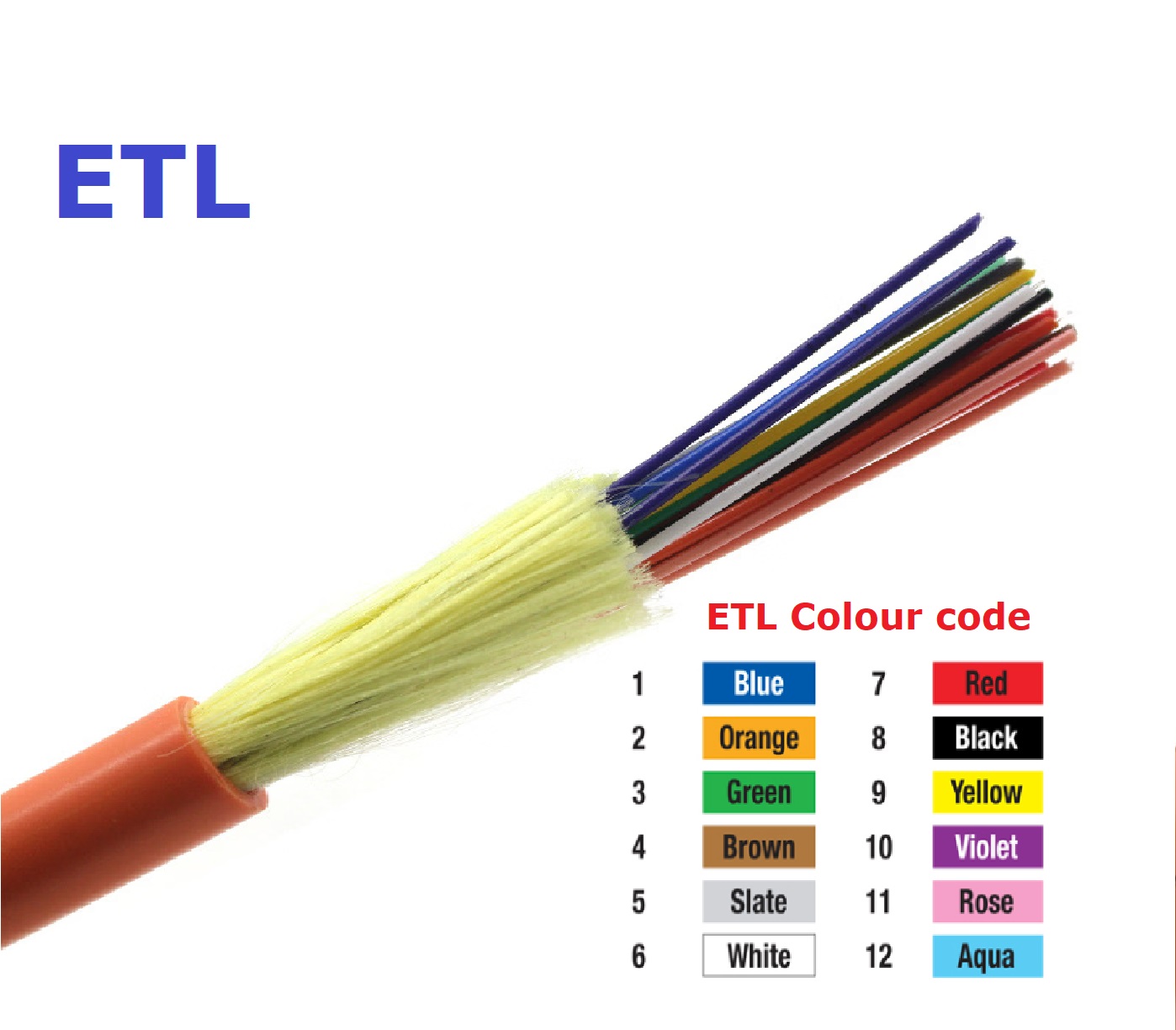

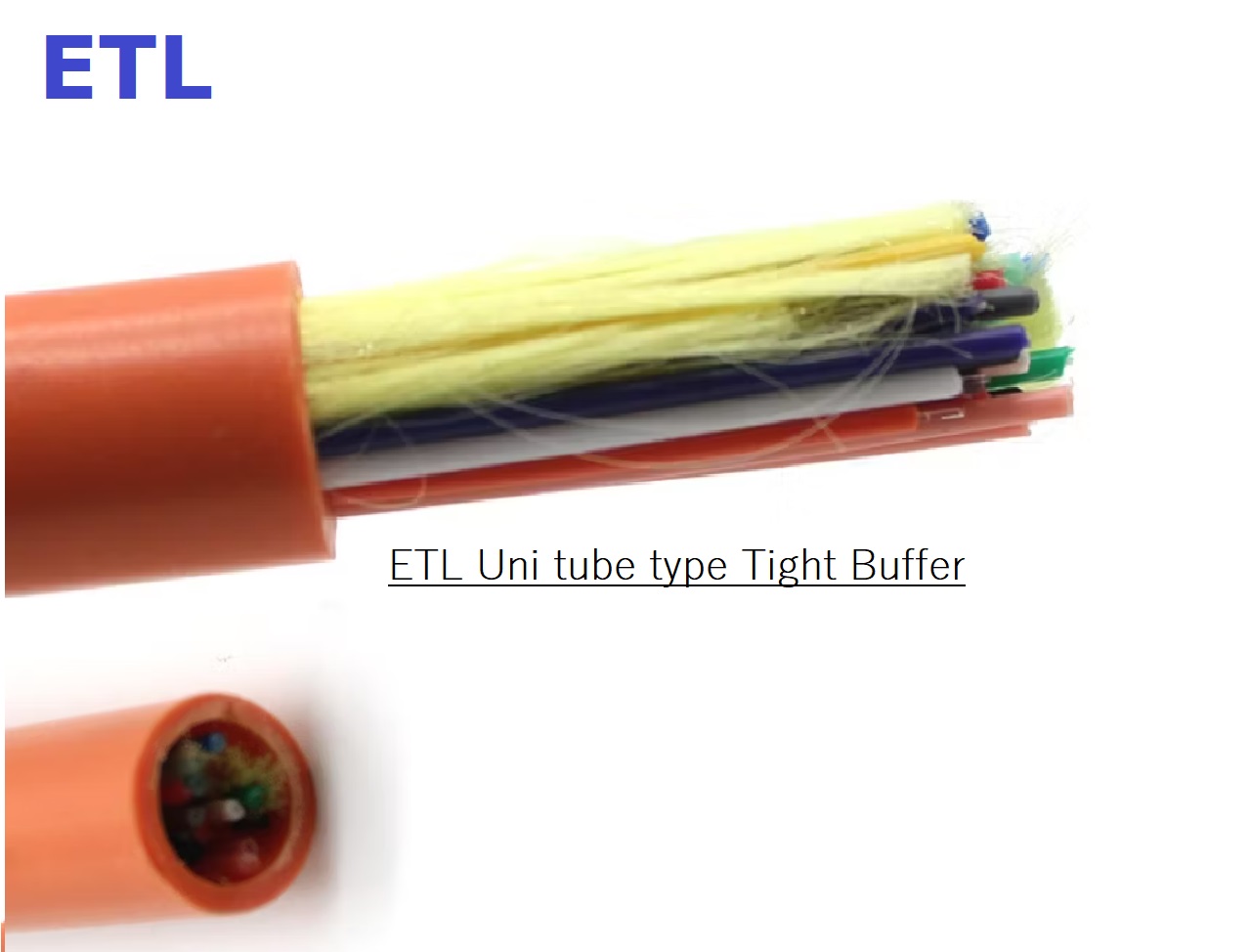

Construction:
– Fiber – Tight buffer fiber, outer diameter 0.9-0.05mm
– Aramid yarn
– LSZH outer jacket, Outer diameter 5.2-0.1mm
