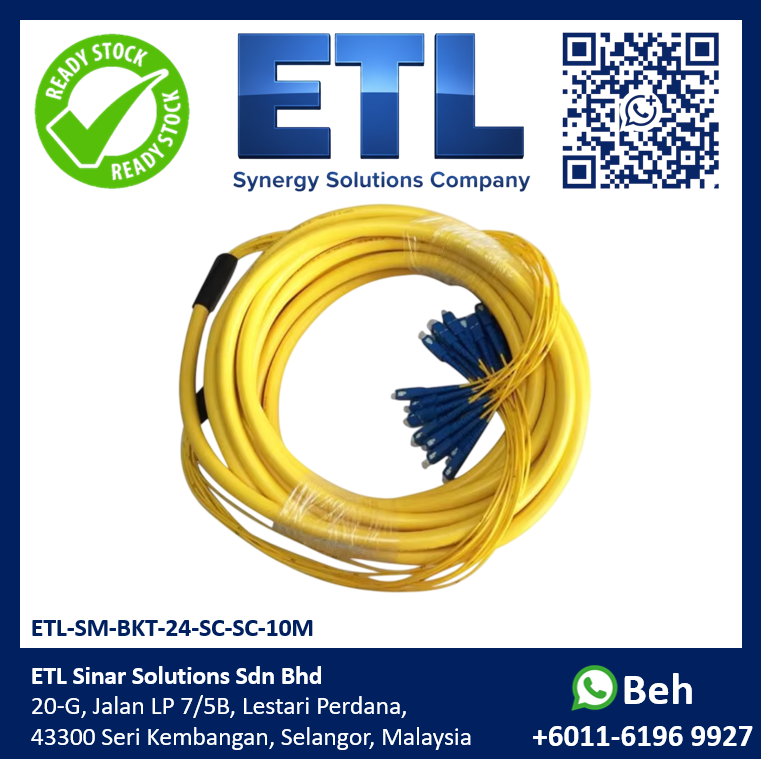

24C SM Fiber Breakout Cable SC-SC 10 Meter LSZH Yellow Jacket Custom Lengths Available [E2000/SC/LC/FC]

Upgrade your network infrastructure with our heavy-duty 24-Core Single Mode Fiber Optic Breakout Cable. Engineered for high-density indoor environments, server rooms, and telecom distribution, this cable features 2mm independent single-fiber sub-units designed to facilitate a rugged, reliable bond between the connector and the fiber core.

Built with 900µm tight-buffered simplex fibers, it ensures exceptionally easy and consistent field terminations. Protected by a premium, flame-retardant LSZH (Low Smoke Zero Halogen) outer jacket in industry-standard yellow, this cable guarantees maximum safety and compliance in the event of a fire.

📌 Key Features & Benefits

– Rugged Breakout Design: Each of the 24 cores is housed in an individual 2mm sub-unit, allowing you to route, splice, or terminate each fiber independently without needing extra breakout kits.

– Easy Termination: The 900µm tight-buffered construction allows for fast, consistent stripping and termination in the field.

– LSZH Safety Jacket: Flame-retardant Low Smoke Zero Halogen compound reduces toxic and corrosive gas emissions during combustion.

– Numbered Sub-units: Inside the jacket, each sub-unit is clearly numbered for effortless identification, troubleshooting, and organization.

– Ready Stock: 10-meter pre-terminated SC-to-SC configurations are packed and ready to ship immediately.

⚙️ Technical Specifications

Fiber Count: 24 Cores (24C)

Fiber Type: Single Mode (SM)

Connector Type: SC to SC (Supports PC / APC polishing configurations)

Default Length: 10 Meters

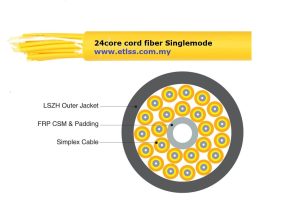

Sub-unit Diameter: 2.0mm Simplex Sub-units

Buffer Layer: 900µm Tight Buffered

Outer Jacket Material: Flame-Retardant LSZH

Jacket Color: Yellow (Standard for Single Mode)

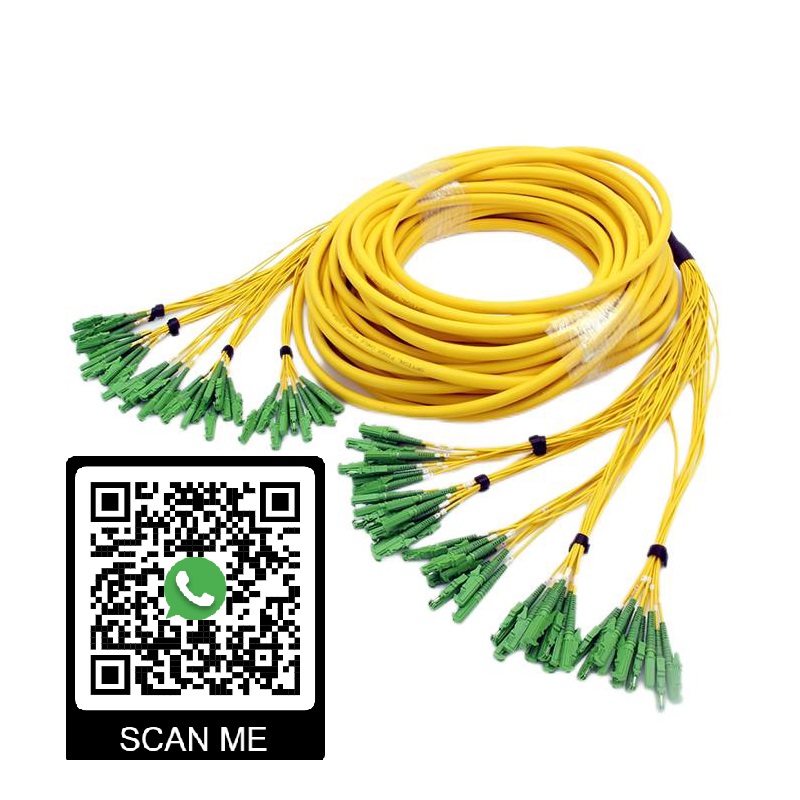

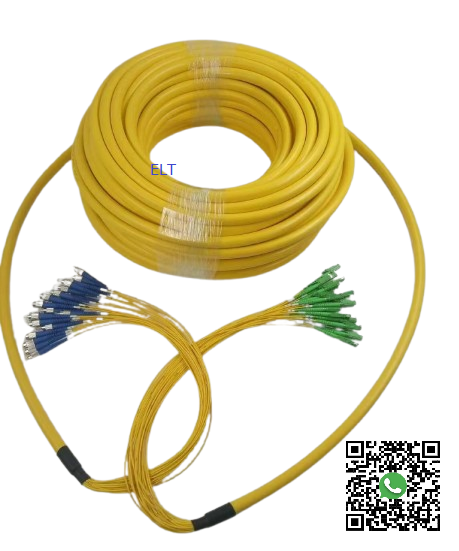

Compatible Connectors (For Custom Builds): LC, FC, SC, E2000, LSH, APC, PC

🛠️ Customization & Special Orders

Need a different length? Looking for specific connector terminations like LC, FC, or E2000 (LSH)? We’ve got you covered!

Custom Lengths & Configurations Available: We provide tailored fiber patch cord and breakout cable assembly services to fit your exact project specifications. Please contact our customer support team directly for custom quotations and lead times.
