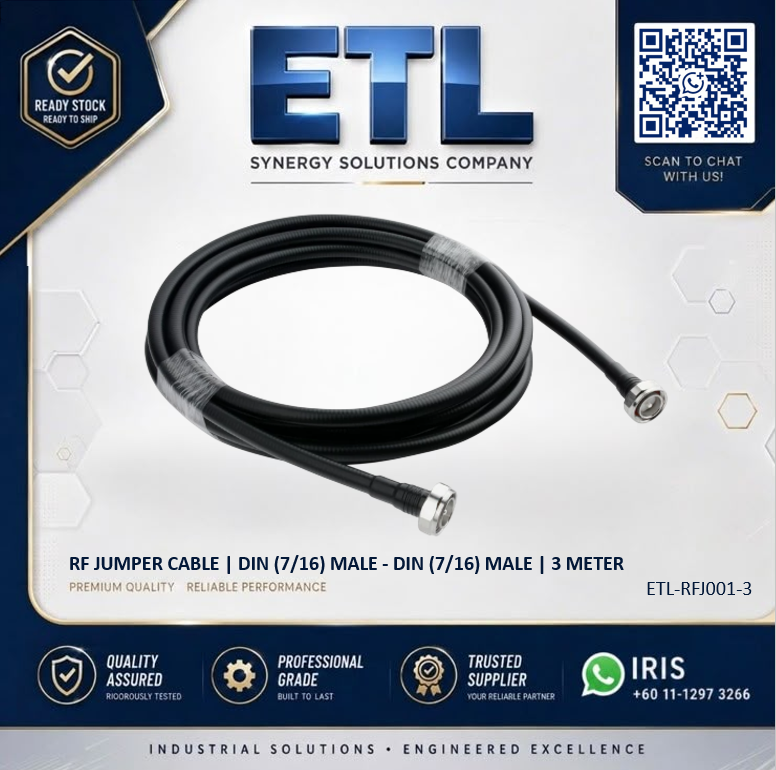

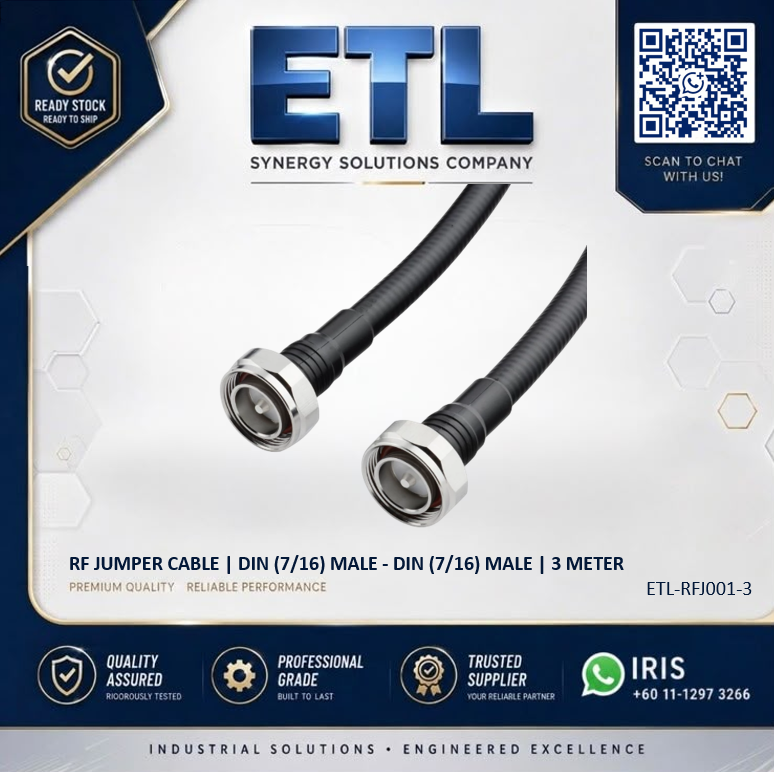

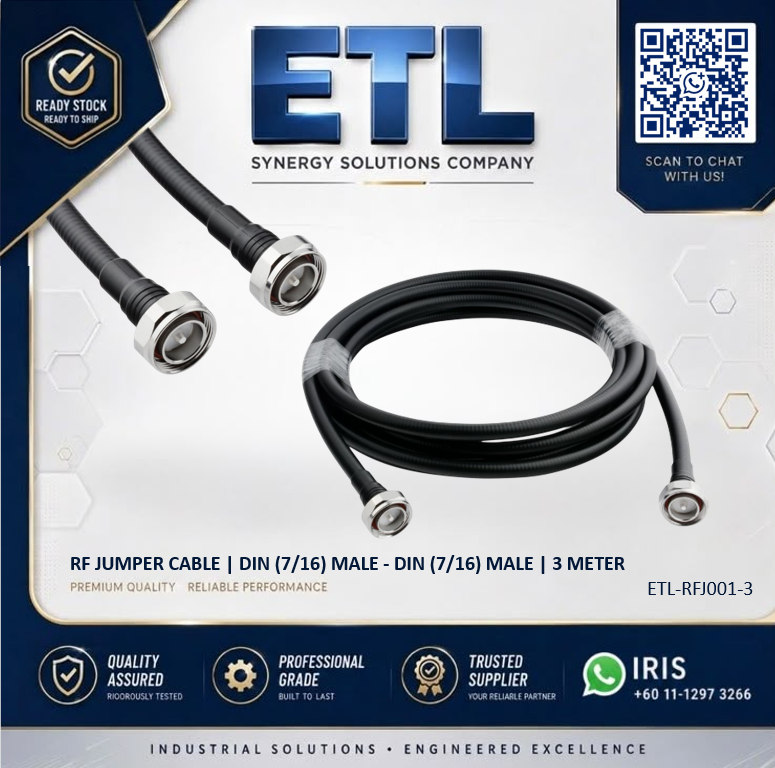

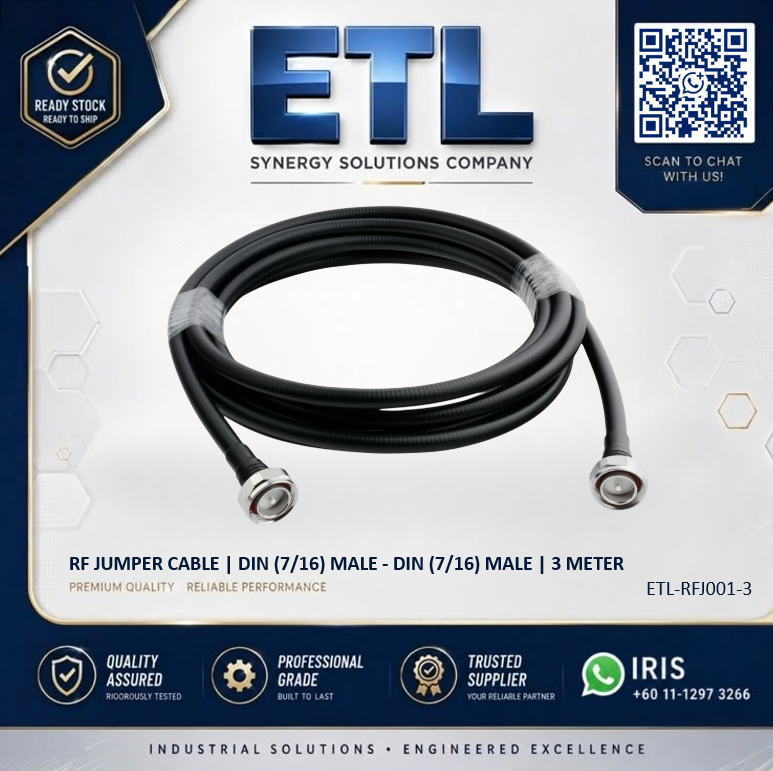

1/2″ Super Flexible RF Coaxial Jumper Cable | DIN (7/16) Male to MINI DIN 4.3-10 Male / DIN (7/16) Male to DIN (7/16) Male / MINI DIN 4.3-10 Male to MINI DIN 4.3-10 Male

Our 1/2″ Super Flexible RF Coaxial Jumper Cable Assemblies are designed for high-performance telecommunication networks, distributed antenna systems (DAS), cellular base stations, and RF equipment interconnects. Featuring low Insertion Loss, low VSWR, and superior Low PIM (Passive Intermodulation) performance (≤ -160 dBc), these cable assemblies ensure clean signal transfer with minimal interference.

Engineered with a corrugated copper outer conductor, physical foam polyethylene insulation, and a copper-clad aluminum inner conductor, this 50-ohm super-flexible jumper provides exceptional durability and bending performance for tight installation spaces.

Key Features

High-Performance RF Transmission: 50 Ohm impedance supporting frequency ranges up to 5000 MHz.
Low PIM Performance: Rated at ≤ -160 dBc @ 900MHz / 1800MHz to minimize interference in modern 4G/5G networks.
Super Flexible Design: 1/2″ super-flexible corrugated copper construction allows tight bend radiuses without damaging signal integrity.
Weatherproof & Durable: Operating temperature range from -45°C to +85°C, with IP-rated sealing silicon rubber gaskets and salt-mist test compliance.
RoHS Compliant.

Technical Specifications

Specification	Parameter
Cable Type	ETL-50-9 (1/2″ Super Flexible)
Impedance	50 Ω
Inner Conductor	Copper-Clad Aluminum Wire
Dielectric	Physical Foam Polyethylene
Outer Conductor	Corrugated Copper Tube
Jacket Options	Black PE / LSZH (Low Smoke Zero Halogen Fire-Retardant)
Insulation Resistance	≥ 5000 MΩ
Dielectric Withstanding Voltage	2500V (DC, 1 Min)
PIM3 Rating	≤ -160 dBc @ 900MHz & 1800MHz
VSWR	≤ 1.10 (690–960 MHz) / ≤ 1.13 (1710–2500 MHz) / ≤ 1.20 (3000–5000 MHz)
Insertion Loss	≤ 0.15*L + 0.20 dB (DC–3000 MHz)
Durability	≥ 500 mating cycles
Temperature Range	-45°C to +85°C
