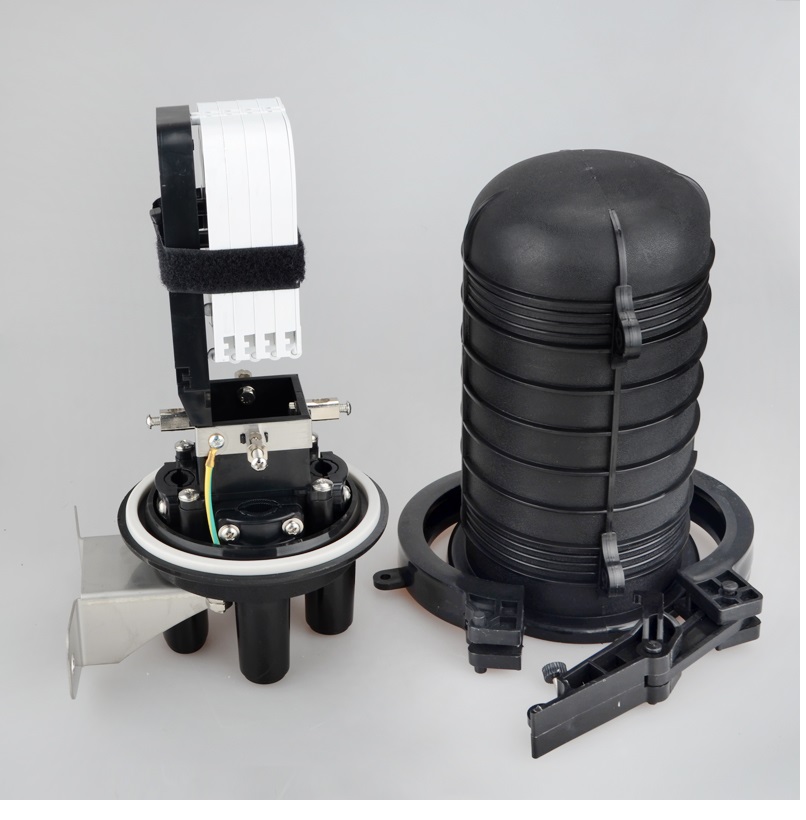

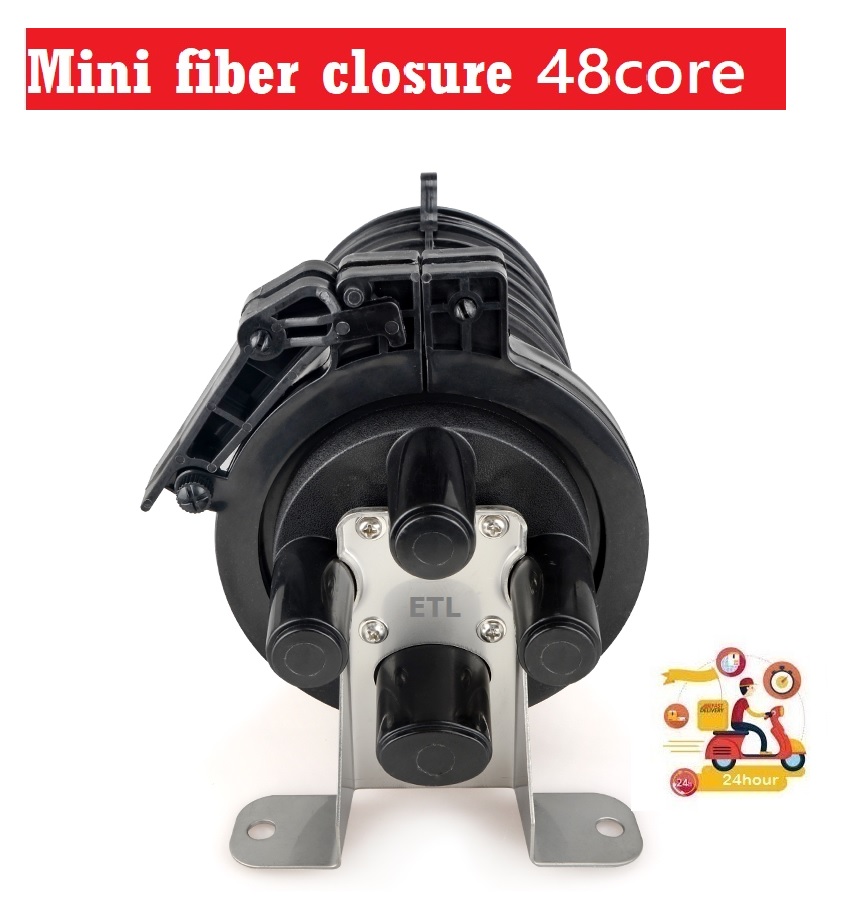

Dome Fiber Optic Splice Joint Closure Pole & Main hole installation 12c-48 fiber core
#fiber #splicing #closure #mini #TM #Pole #FOSC
#installation_TM #POP #installation_pole
| Model No. | ETL-FOSC-MINI-48c-H | |||
| Style | Dome pole Mounted | |||

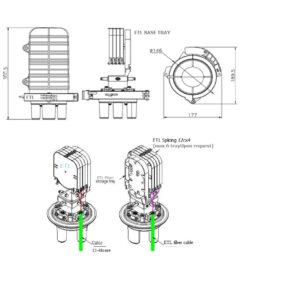

| Dimensions(mm) | 335 × Φ225 | |||
| Weight (kg) | 2.8kg | |||
| Material | PP+GF | |||
| Sealing Type | Heat shrink Seal | |||
| Protection Grade | IP68 | |||
| Cable ports | Oval port | 1 | Φ8 – Φ18 mm | |
| Branch port | 4 | Φ8 – Φ18 mm | ||
| Closure Max Capacity | Single fiber splicing | 48F | ||
| Splice Tray Capacity | 4F (two layer) | 12F (single layer) | ||
| Max No. tray installed | 4pc | |||
| PLC Splitter (optional) | Mini 1:8 PLC | 1pc | ||
| Installation | Pole, underground Main hole | |||
