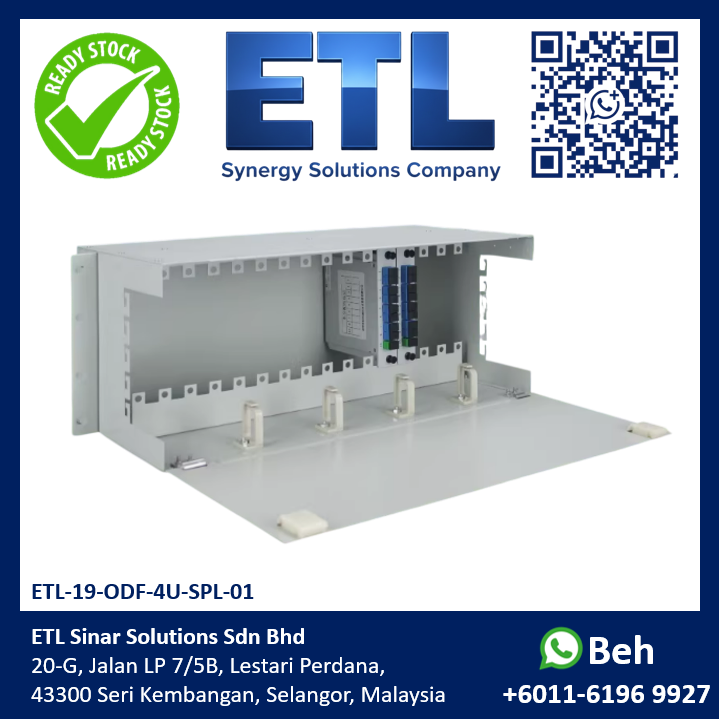

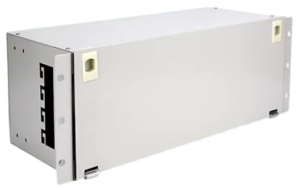

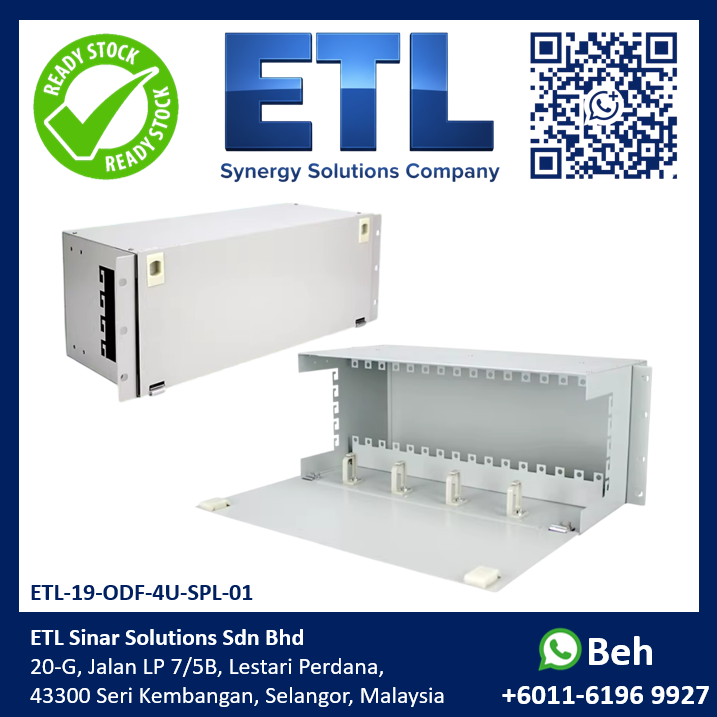

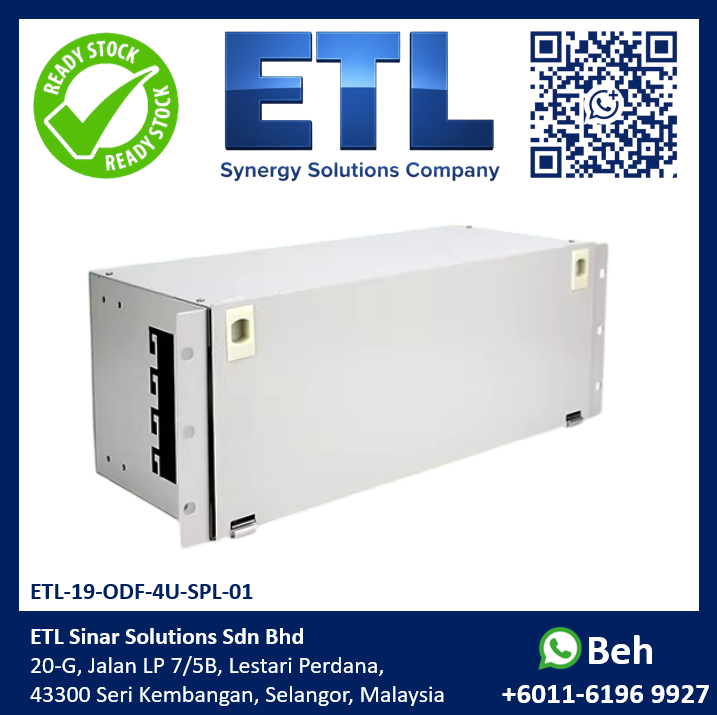

The 4U Rack-Mount Splitter Unit is a professional-grade fiber management solution designed for high-density optical network environments. Engineered for durability and ease of use, this thickened steel chassis provides a secure housing for PLC splitters and fiber modules. Its fold-down front panel ensures effortless access for patching and maintenance, making it an essential component for telecommunication rooms and data centers requiring organized, scalable fiber distribution.
Key Features
-
Rugged Construction: Features a “Thickened Model” design with high-strength door ears (1.4mm) and a robust main body frame (1.0mm–1.2mm) for maximum structural integrity.
-
High-Density 4U Design: Occupies 4U of rack space, providing ample room for multiple fiber splitter modules and complex cable management.
-

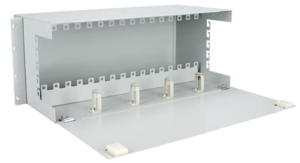

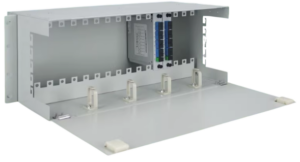

Convenient Accessibility: The front-loading fold-down door allows for quick installation and easy management of optical jumpers.
-
Integrated Cable Management: Equipped with internal cable routing rings to maintain proper bend radius and prevent fiber congestion.
-
Standard Compatibility: Fully compatible with standard 19-inch server racks and cabinets.
Technical Specifications
| Feature | Detail |
| Model Type | 19-Inch Rack-Mount (4U Height) |

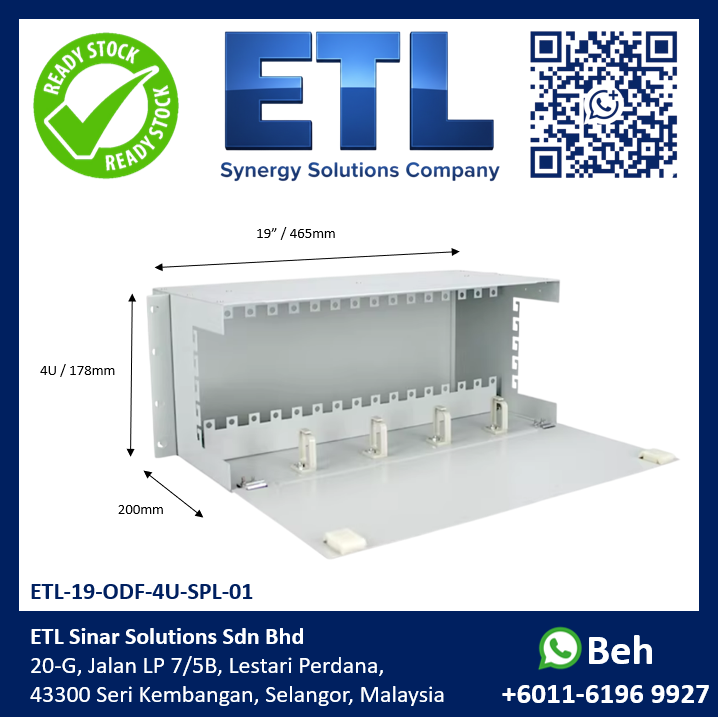

| Dimensions (WxDxH) | 465mm (Mounting Width) x 200mm (Depth) x 180mm (Height) |
| Mounting Standard | Standard 19-Inch Rack Installation |
| Material Thickness | Door Ears: 1.4mm / Body Frame: 1.0mm – 1.2mm |
| Capacity | Supports multiple Splitter Cassettes/Modules |
| Color | Industrial Light Grey (Powder Coated) |
| Access Type | Fold-down front panel with secure latching |
Applications
-
FTTH (Fiber to the Home): Centralized splitting and distribution in residential broadband networks.
-
Data Centers: High-density optical cross-connects and backbone cabling management.
-
Telecommunications: Central Office (CO) fiber distribution and signal splitting.
-
CATV Networks: Organization of optical splitters for cable television signal transmission.
-
Enterprise Networking: Structured cabling for large-scale corporate server rooms.
