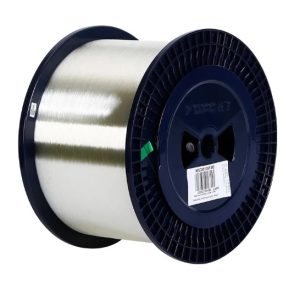

Bare Fiber optic Spool
Description
OTDR to measure complete link loss of a fiber. Test OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.
Features: #Fiber #spool #Malaysia
Fiber Single mode; G.652D fiber.
Connectors can be added as per your request. (LC/ST/FC/SC/ E2000)
Standard length: 2-50km/spool
| Transmission Characteristics | |||
| Dec | SM
(1310/1550 nm) |
MM 50/125
(850/1300 nm) |
MM 62.5/125
(850/1300nm) |
| Max Attenuation (dB/km) | 0.4/0.30 | 3.5/1.5 | 3.5/1.5 |
| Typical Attenuation (dB/km) | 0.35/0.21 | 3.1/1.0 | 3.0/1.0 |
| Mini Bandwidth (Mhz.km) | — | 400/400 | 160/500 |
