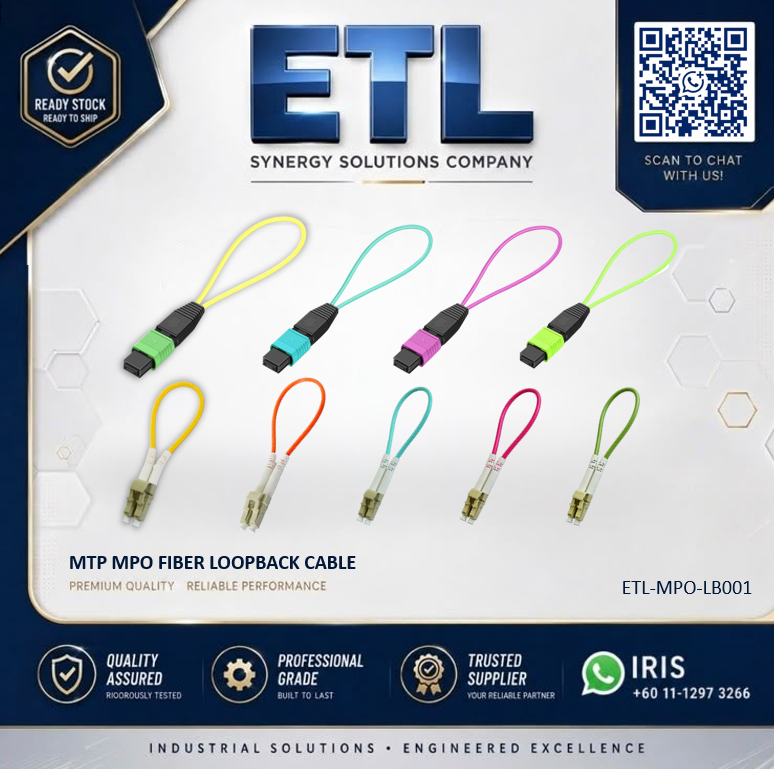

MTP/MPO Fiber Loopback Cable

Name: MTP MPO Fiber Loopback | MTP/MPO Loopback | ETL Malaysia
SKU: ETL-MPO-LB001
Availability: InStock

The MTP/MPO Fiber Loopback provides an optical loop path within an MTP/MPO connector, allowing optical signals to be routed from the transmit side back to the receive side.

It is designed for testing the transmit and receive capabilities of network equipment, particularly in telecommunications and data communication applications.

The compact, high-density design supports multiple MTP/MPO configurations and can be supplied with or without attenuation. Available configurations include 8-core QSFP, 12-core, 16-core and 24-core options, with both single-mode and multimode fiber configurations supported by the product specification.

Key Features

High-density MTP/MPO fiber loopback design
Suitable for telecom and data communication equipment testing
Single-mode and multimode fiber options
8-core QSFP, 12-core, 16-core and 24-core configurations available
With or without attenuation
PC or APC 8° end-face options
Male or female connector options
Low-loss and normal-loss options
Multiple housing/frame colours available
Compact and robust housing
Protected internal fiber routing
Suitable for system loop testing and jumper circuit detection
Telcordia GR-1435-CORE and RoHS compliance stated in the supplied datasheet

APPLICATIONS

Telecommunications

For testing optical interfaces and transmission equipment used in telecommunications networks.

Data Communication

Suitable for network equipment and high-density optical connectivity environments.

MTP/MPO Network Component Testing

Used within MTP/MPO network component systems.

System Cabling

Suitable for checking optical connectivity within structured cabling systems.

System Loop Testing

Provides an optical loop path for equipment testing.

Jumper Circuit Detection

Can be used to detect and verify jumper circuits.

SPECIFICATIONS

Parameter	Single-Mode	Multimode
Operating Wavelength	1310 / 1550 nm	850 / 1300 nm
Typical Insertion Loss	0.35 dB	0.30 dB
Maximum Insertion Loss	0.8 dB	0.7 dB
Return Loss	UPC ≥50 dB / APC ≥60 dB	≥20 dB
Interchangeability	≤0.2 dB	≤0.2 dB
Repeatability	≤0.1 dB	≤0.1 dB
Operating Temperature	-20°C to +75°C	-20°C to +75°C
Fiber Types	G652D, G657A1, G657A2, G657B3	OM1, OM2, OM3, OM4, OM5
Applicable Cable Diameter	Ø3.0 mm / Ø2.0 mm	Ø3.0 mm / Ø2.0 mm

AVAILABLE CONFIGURATIONS

Attribute 1 — Fiber Type

Single Mode
OM1
OM2
OM3
OM4
OM5

Attribute 2 — Wavelength

850nm
1300nm
1310nm
1550nm

Attribute 3 — Connector

APC Female
PC Female
APC Male
PC Male
Module A
Module B
Customized

Attribute 4 — Fiber Length

80mm
100mm
120mm

Attribute 5 — Fiber Count / Configuration

8-Core QSFP
12-Core
16-Core
24-Core

Attribute 6 — Loss Grade

Low Loss
Normal Loss

Attribute 7 — Attenuation

Without Attenuation
With Attenuation

FAQ

What is an MTP/MPO fiber loopback?

An MTP/MPO fiber loopback creates an optical loop path between the transmit and receive sides of an MTP/MPO connector for testing network equipment.

What is an MTP/MPO loopback used for?

It is used for testing transmit and receive capabilities, system loop testing and jumper circuit detection.

Is this available in Single Mode and Multimode?

Yes. The supplied specifications support both Single Mode and Multimode fiber types.

What wavelengths are available?

The datasheet specifies 1310nm and 1550nm for Single Mode, and 850nm and 1300nm for Multimode.

Is APC available?

Yes. APC and PC connector options are listed, including male and female configurations.

Can I request a customized configuration?

Yes. The ordering information includes a customized option. Contact ETL for configuration matching.

Can this be used for telecom applications?

Yes. The datasheet specifically identifies telecommunications and data communications requirements as applications.

Need a Specific MTP/MPO Loopback Configuration?

ETL can assist with configuration matching based on your equipment and project requirements.

Contact ETL for:

MTP/MPO connector configuration
Single Mode / Multimode selection
Fiber count
Wavelength
Connector gender
Fiber length
Attenuation requirements
Bulk / project quotation

Weight	0.1 kg
Dimensions	5 × 8 × 2 cm

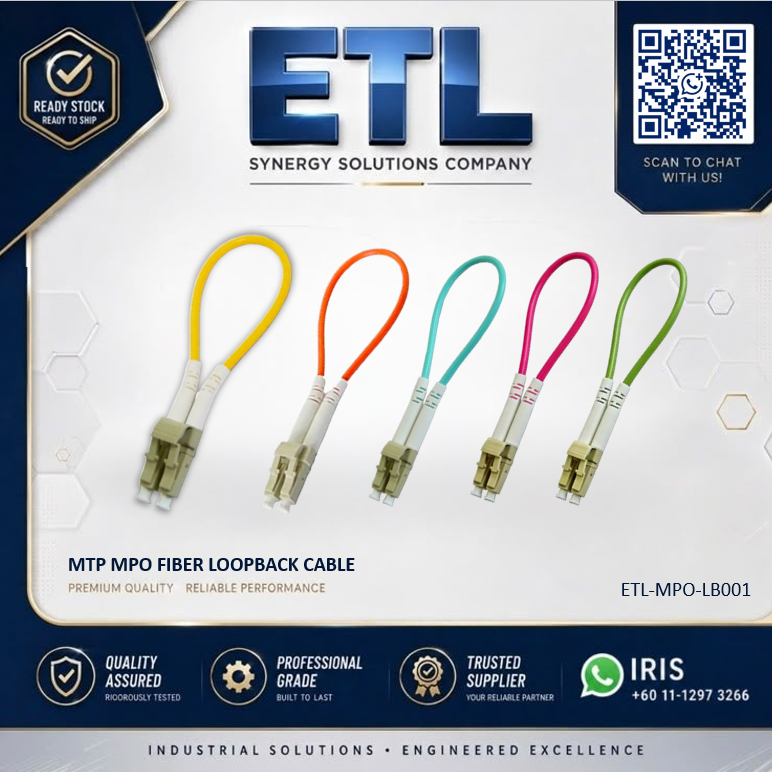

Type B	MPO OM3 8C, MPO OM3 12C, MPO OM3 16C, MPO OM3 24C, MPO OM4 8C, MPO OM4 12C, MPO OM4 16C, MPO OM4 24C, MPO SM 8C, MPO SM 12C, MPO SM 16C, MPO SM 24C, MPO OM5 8C, MPO OM5 12C, MPO OM5 16C, MPO OM5 24C, LC SM Loopback, LC OM2 Loopback, LC OM3 Loopback, LC OM4 Loopback, LC OM5 Loopback
