Pre-connectorise Master-line fiber patch cord single mode multi mode cable

Our pre-terminated Fiber Optic Cables offer a plug and play custom fiber solution for seamless installation in electrical conduits or within walls for both residential and commercial settings.

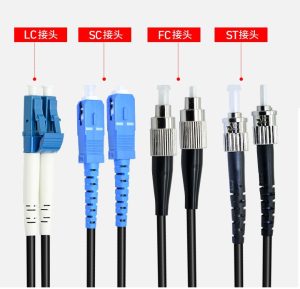

2-4 core  Fibers Multi mode 50/125um  LC/SC/ST/FC/LSH

Application Grade IP67 Industrial Outdoor Non armored Fiber Optic Patch

Specifications

Connector Type

Polish Type UPC

Fiber Count 2 Fibers

Cable Jacket TP/PVC(Thermoplastic Polyurethane)

Fiber Mode OM2[50/125um]

Wavelength 850/1300nm

Attenuation at 850nm 3.0 dB/km

Attenuation at 1300nm 1.0 dB/km

Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)

Fiber Grade  G.651/Bend Insensitive (OM1/OM2)

Insertion Loss LC/SC/ST/FC≤0.3dB,

Return Loss  ≥20dB

Crush Resistance 1000/3000 N/100mm (Long/Short Term)

Tensile Load 200/600N (Long/Short Term)

Trunk Diameter 3.0-7.0mm

Breakout Diameter 3.0mm (1~4 Fibers)

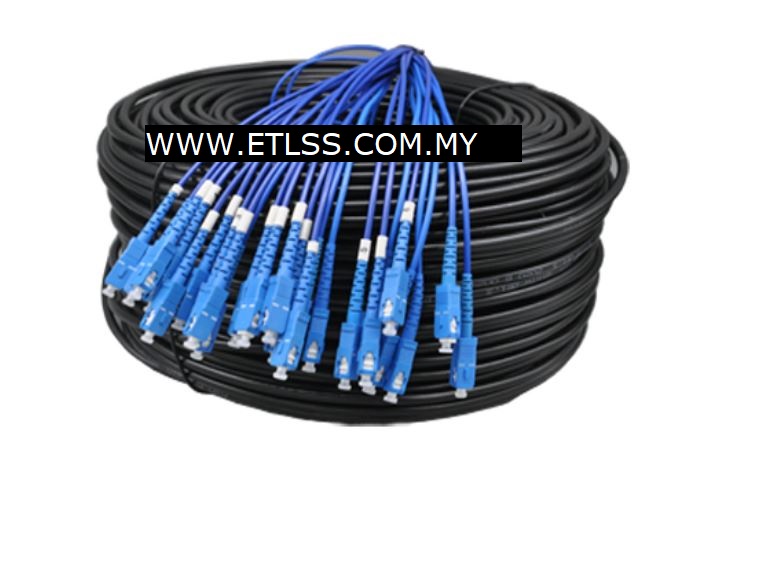

 4core type Master line fiber cord with per-connectorise
