Looking for high-performance, industrial-grade networking cables?

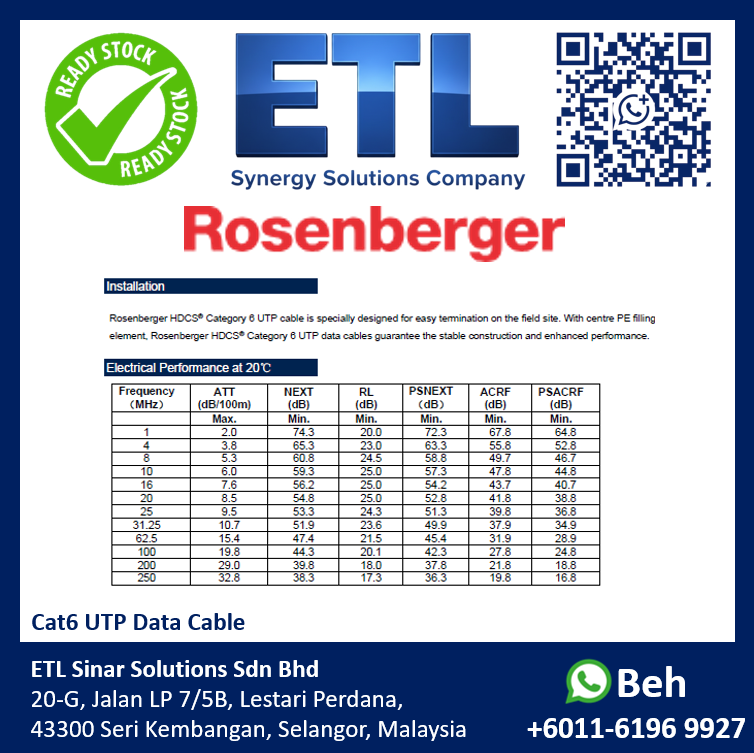

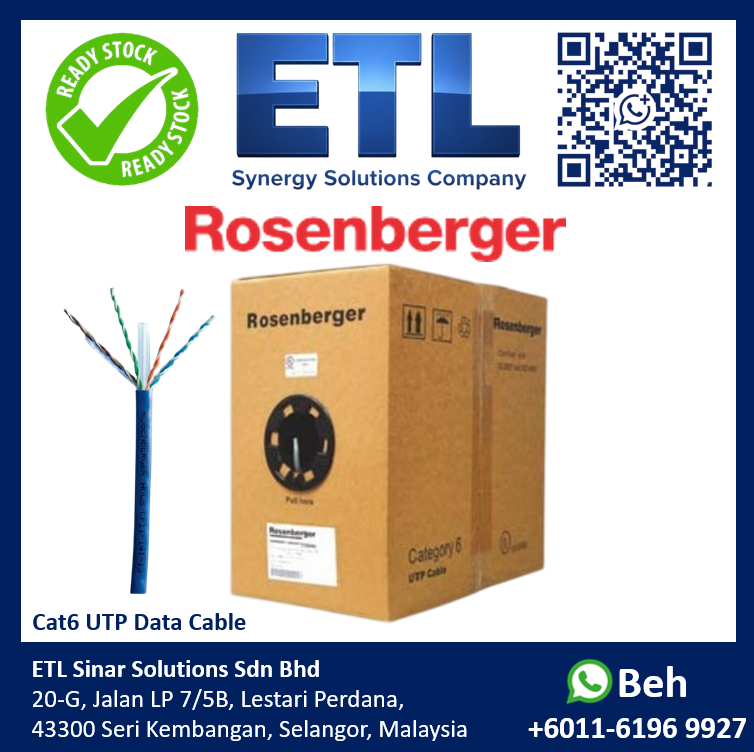

The Rosenberger HDCS® Category 6 UTP Data Cable is designed for unshielded cabling systems requiring high bandwidth, ultimate stability, and maximum performance. Whether you are setting up a high-speed corporate network, a gigabit internet home connection, or structured commercial cabling, this cable exceeds ANSI/TIA-568.2-D and ISO/IEC11801 2nd requirements for Category 6 performance with a massive margin on all parameters
Why Choose Rosenberger Cat6 UTP?
– 100% Pure Solid Copper: Built with AWG 24 solid copper conductors for optimal conductivity, reliable data transmission, and zero compromise on quality.
– Enhanced Internal Construction: Features a center PE filling element (cross separator) that ensures stable physical cable construction and significantly minimizes crosstalk/interference on-site.
– True Gigabit Performance: Fully optimized to support 10baseT, 100baseTX Fast Ethernet, 1000baseTX Gigabit Ethernet, and up to 1.2 Gbit ATM applications.
– 25-Year System Warranty: Guaranteed long-term reliability backed by the Rosenberger HDCS® True Class E system warranty.
– RoHS Compliant: Eco-friendly and adheres strictly to international environmental safety standards.

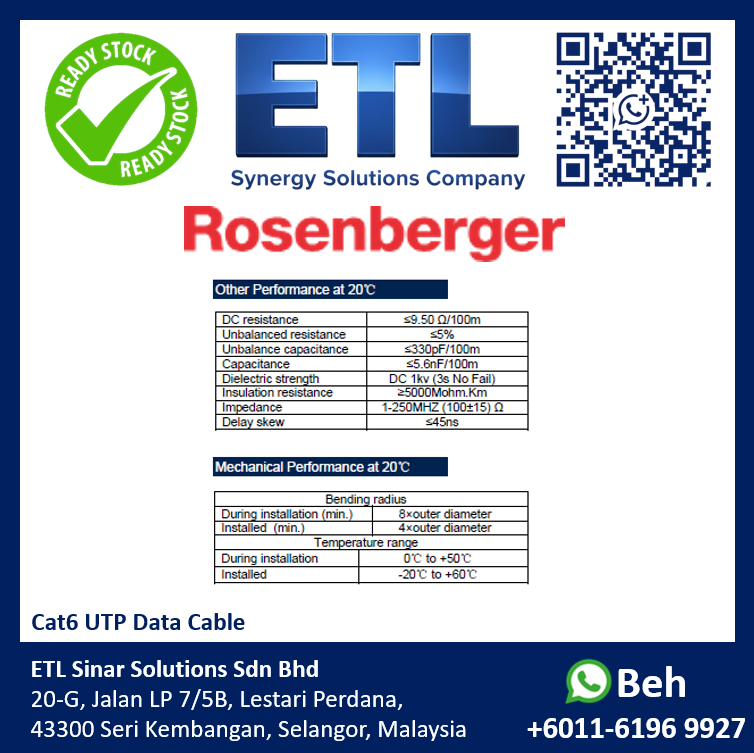

Technical Technical Details:
Conductor Size: 4 pairs x 2 x AWG24 (Minimum 24 AWG)
Insulation Material: High-Density Polyethylene (HDPE)
Nominal Outer Diameter: 5.8 ± 0.3mm
Impedance: 1-250 MHz (100 ± 15) Ω
Delay Skew: ≤ 45ns
DC Resistance: ≤ 9.50 Ω / 100m
Installation Temperature Range: 0°C to +50°C
Operational Temperature Range: -20°C to +60°C
Applications & Usage
Network infrastructure cabling (Server rooms, data centers, office setups)
High-speed Internet routers, PC, Smart TVs, and gaming setups
CCTV IP Camera network expansion
POE (Power over Ethernet) system integrations
