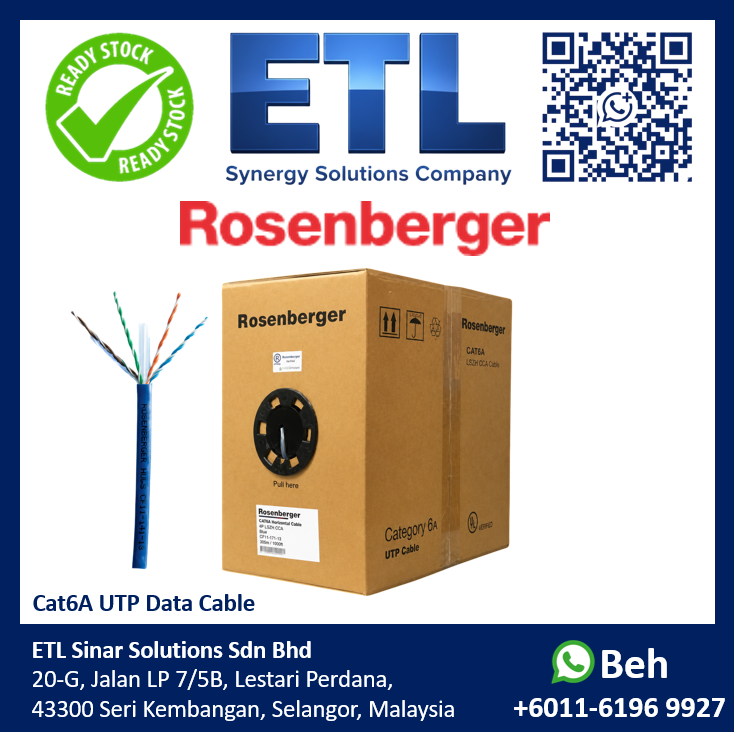

Upgrade your network infrastructure to future-proof speeds with the industrial-grade Rosenberger HDCS® Category 6A UTP Data Cable. Engineered specifically for unshielded cabling systems requiring high data throughput, this premium cable delivers flawless connectivity for demanding enterprise applications, high-density server configurations, and ultimate performance network setups.

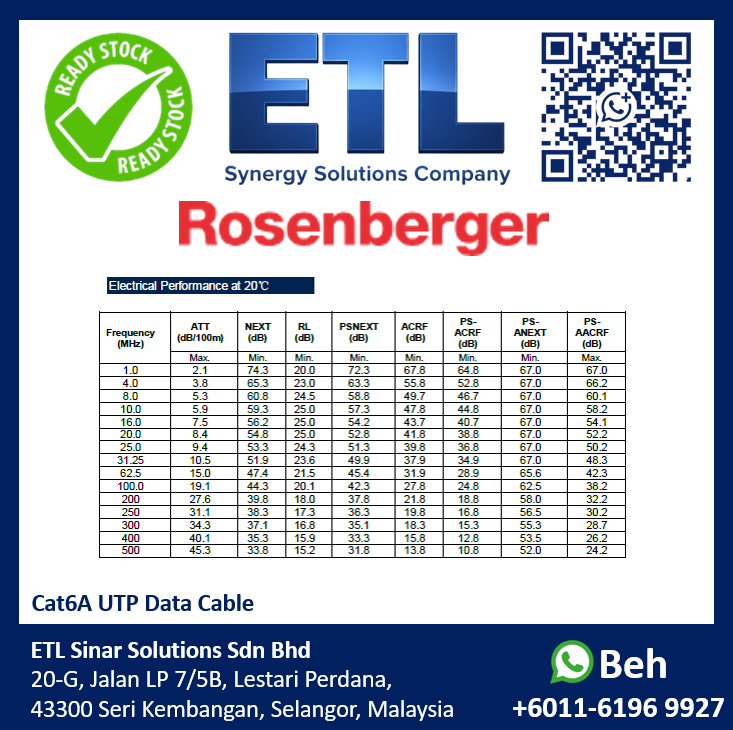

The Rosenberger HDCS Category 6A cables exceed ANSI/TIA-568C.2 specifications for Category 6A performance with wide margins across all key electrical metrics.
Why Choose Rosenberger Cat6A UTP?
– Next-Gen 10Gbps Speed: Fully capable of handling high-speed network loads up to 10Gbase-T Gigabit Ethernet, alongside standard 1000baseTX and 1.2 Gbit ATM applications.
– Thicker 23AWG Solid Copper: Utilizes thicker AWG 23 solid pure copper conductors to optimize performance, minimize attenuation, and support higher bandwidths over longer distances.
– Double Protection Architecture: Features a robust central PE filler (cross separator) combined with an integrated inner PE jacket layer to keep internal geometry perfectly balanced and eliminate alien crosstalk.
– Integrated Rip Cord: Features a built-in rip cord under the sheath to allow fast, clean, and damage-free outer jacket removal during professional terminations.

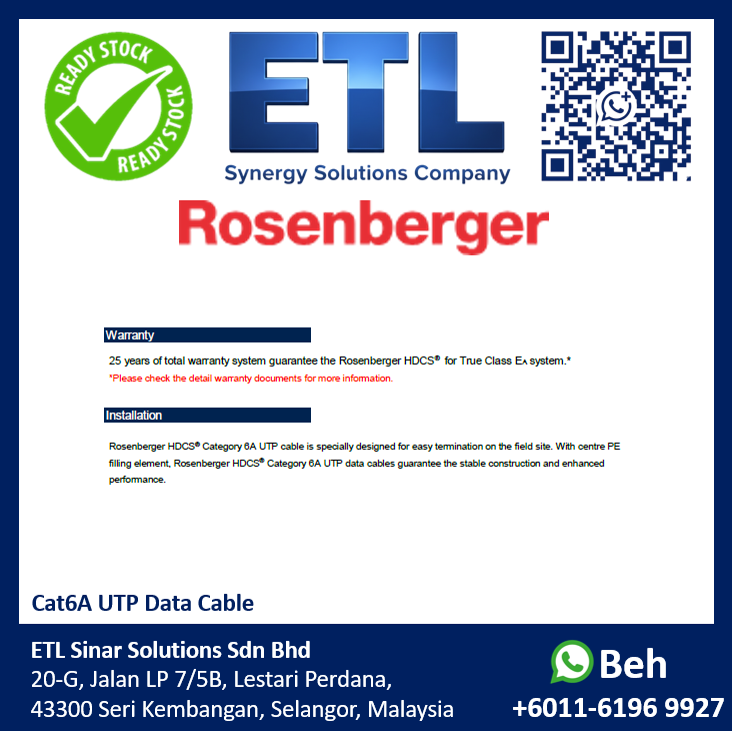

– 25-Year System Warranty: Guaranteed long-term peace of mind backed by the official Rosenberger HDCS® True Class EA system warranty.
Technical Technical Details:

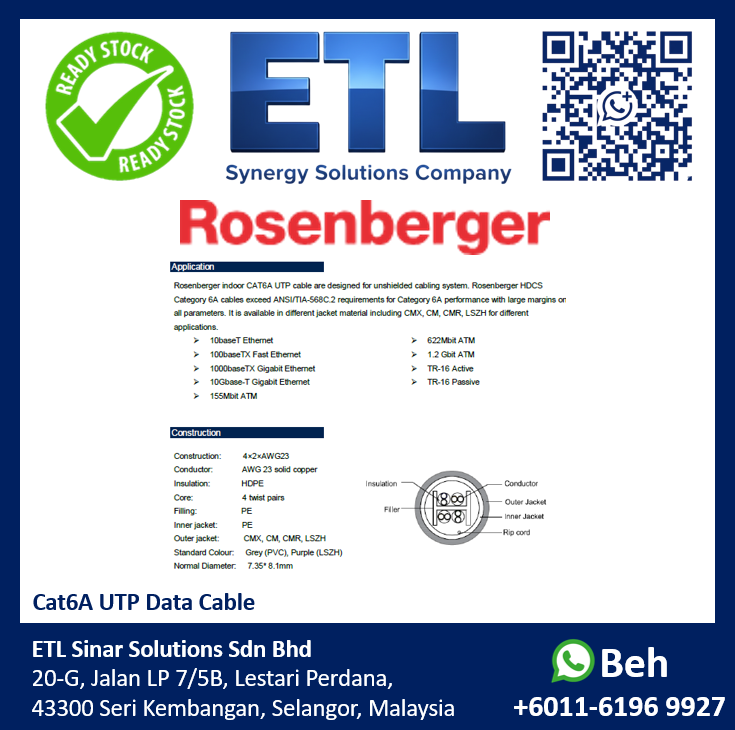

Conductor Size: 4 pairs x 2 x AWG23 Solid Copper
Insulation Material: High-Density Polyethylene (HDPE)
Inner Jacket Material: Polyethylene (PE)
Nominal Outer Diameter: 7.35mm to 8.1mm
Frequency Range Performance: Up to 500 MHz

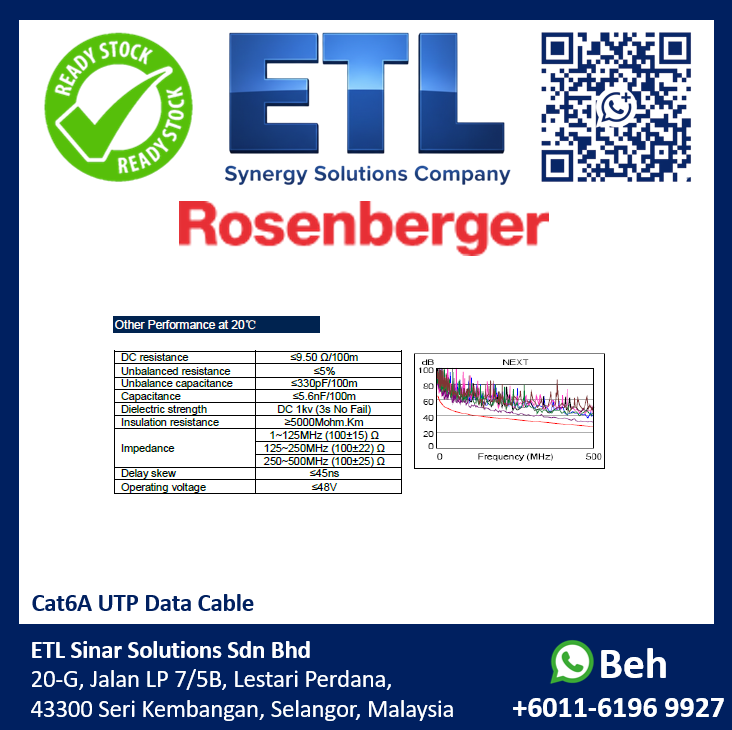

DC Resistance: ≤ 9.50 Ω / 100m
Operating Voltage: ≤ 48V

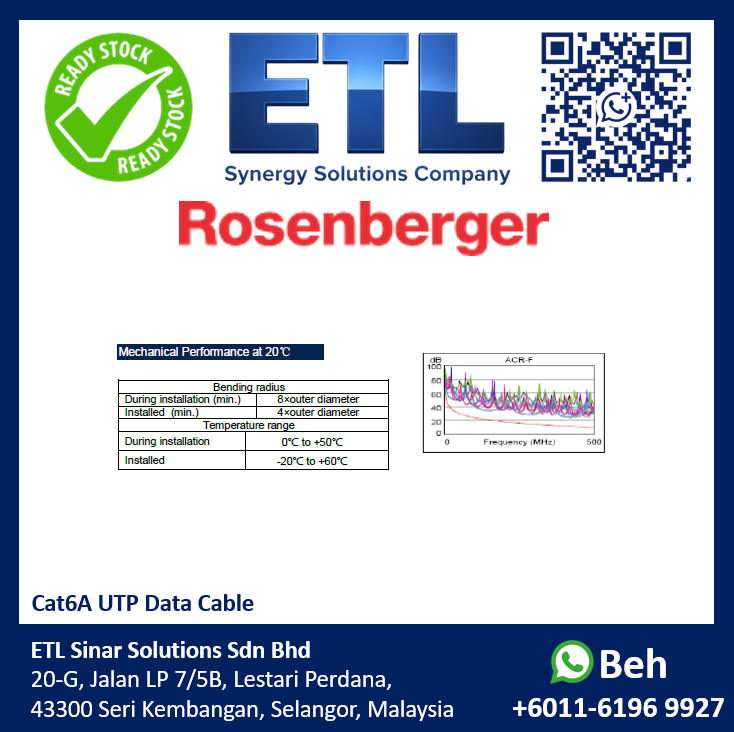

Installation Temperature Range: 0°C to +50°C
Operational Temperature Range: -20°C to +60°C
Applications & Usage
Backbone structured cabling layouts for multi-floor risers (CMR configurations)
High-density enterprise networks running 10G data transfers
Data center environments, server racks, and network switches
Commercial PoE+ applications up to 48V operating limits
