ADSS Fiber Optic Cable Outdoor Aerial 96cores Single Mode 100m Span

ADSS Fiber Optic Cable (4-48 Core, G.652D, 50–100m Span)

1. General Description

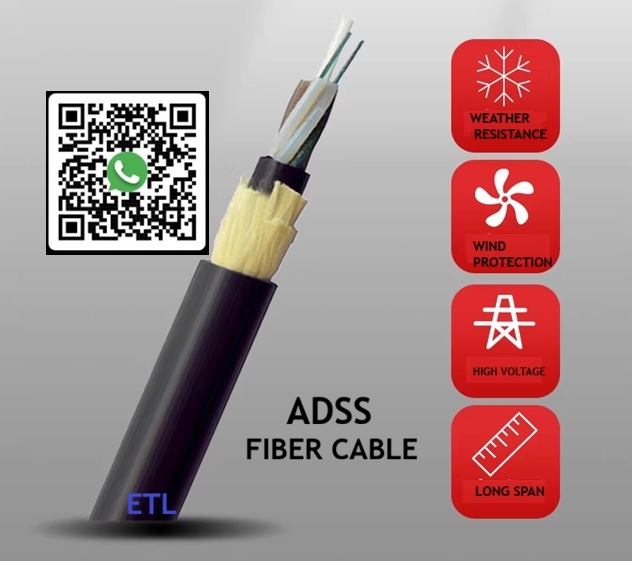

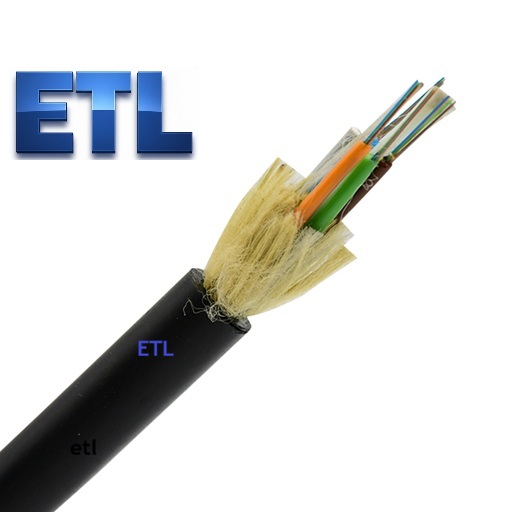

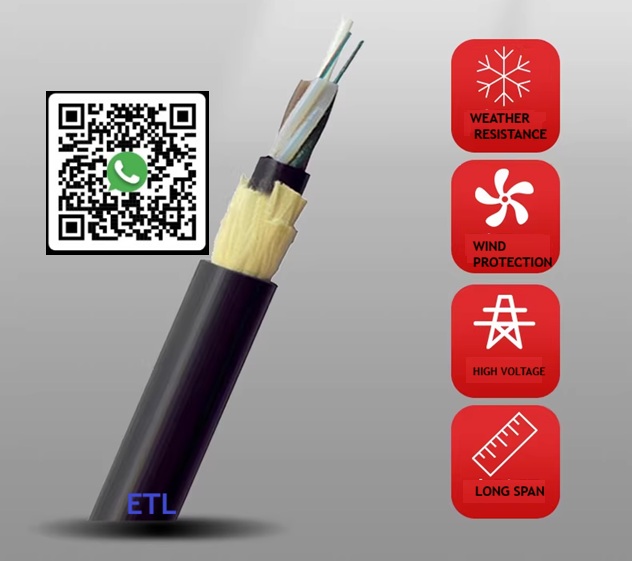

All-Dielectric Self-Supporting (ADSS) fiber optic cable designed for aerial installation without metallic components. Suitable for short-span deployment between 50 to 100 meters, commonly used in access networks and last-mile fiber distribution.

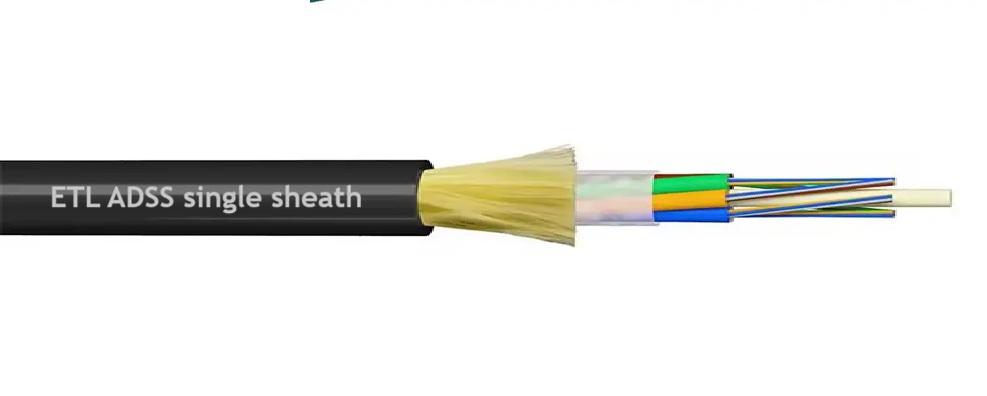

•  Adss Single Sheath

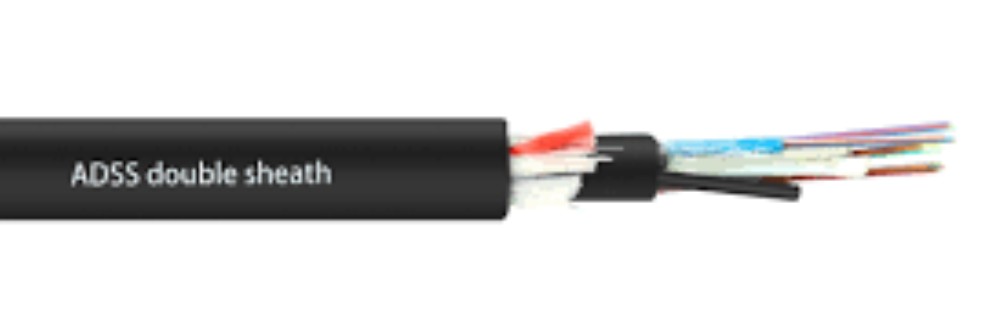

•   Optional Adss Double Sheath

2. Fiber Characteristics

• Fiber Type: Single Mode
• Standard: ITU-T G.652D
• Core Count: 4-96 Fibers
• Wavelength: 1310 / 1550 nm
• Attenuation:
  • ≤ 0.36 dB/km @ 1310 nm
  • ≤ 0.22 dB/km @ 1550 nm

3. Cable Construction

• Structure: Loose Tube
• Central Strength Member: FRP (Fiber Reinforced Plastic)
• Filling: Water-blocking gel or yarn
• Outer Sheath: HDPE (UV resistant)
• Armoring: Non-metallic (All dielectric design)

4. Mechanical Properties

• Max Span Length: 50 – 100 meters
• Tensile Strength: ≥ 1.5 kN
• Crush Resistance: ≥ 1000 N/100mm
• Minimum Bending Radius:
  • Installation: 20 × cable diameter
  • Operation: 10 × cable diameter

5. Environmental Performance

• Operating Temperature: -20°C to +70°C
• Installation Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +70°C
• UV Suitable for outdoor aerial installation

6. Electrical Characteristics

• Fully dielectric (no metallic elements)
• Immune to electromagnetic interference (EMI)
• Suitable for installation near power lines

7. Installation Method

• Aerial self-supporting installation
• No messenger wire required
• Compatible with standard ADSS clamps and fittings

8. Applicable Standards

• IEC 60794 (Optical Fiber Cable Standards)
• ITU-T G.652D (Fiber Standard)
• IEEE 1222 (ADSS Cable Guidelines)

9. Marking & Packaging

• Sequential meter marking on sheath
• Cable drum packing (wooden reel)
• Standard delivery length: 2km / 4km (customizable)

✅ Notes

• “50–100 span” refers to short span ADSS, lighter design vs long-span (200m+).
• “sm” typically means 4-core single-mode fiber (G.652D).
