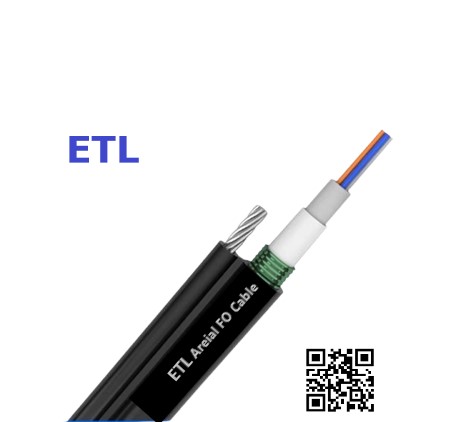

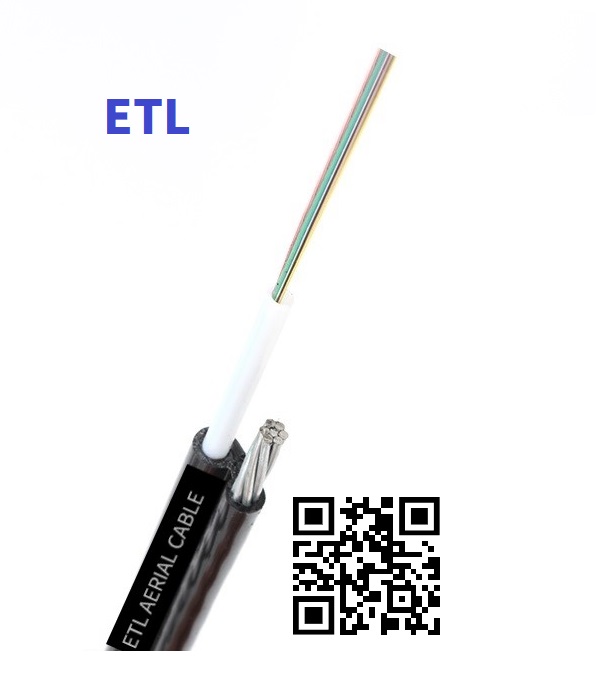

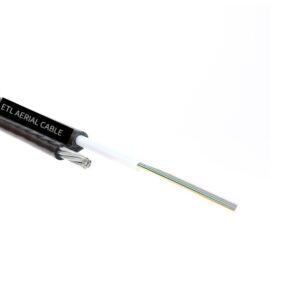

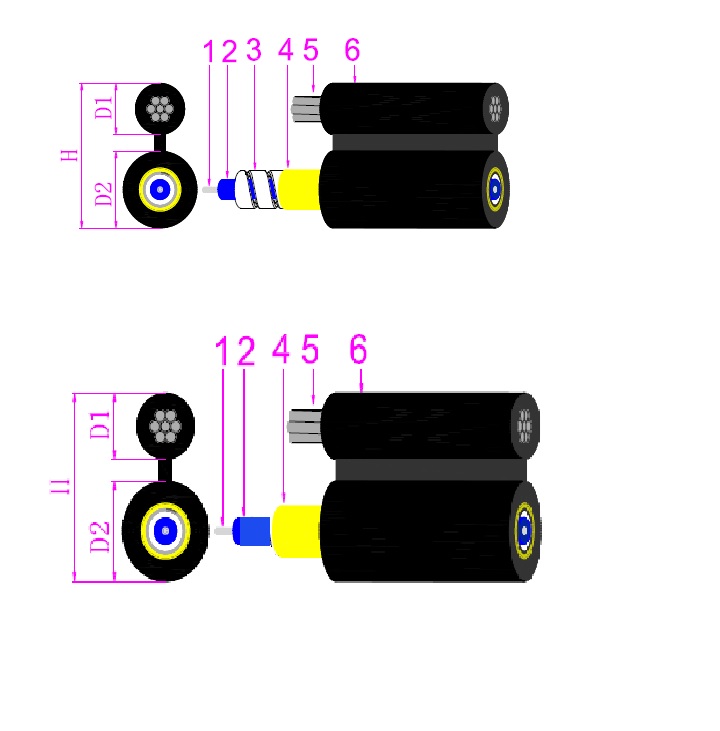

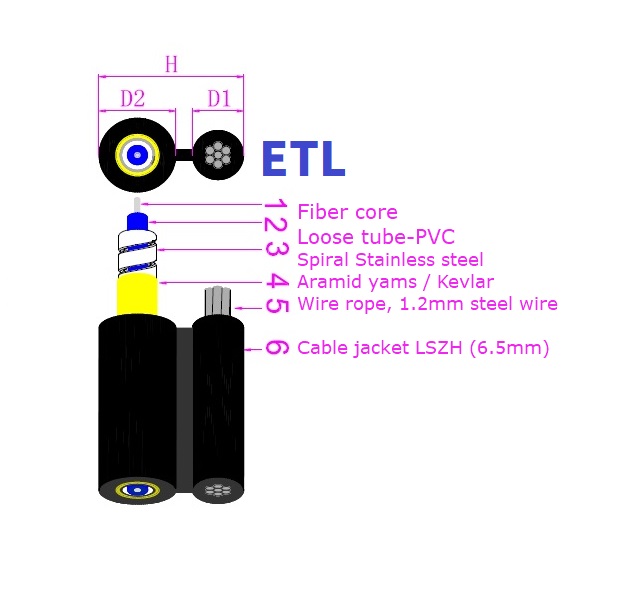

Designed for high-performance outdoor distribution, our Figure-8 Self-Supporting Aerial Fiber Cable is the definitive solution for modern FTTH (Fiber to the Home) rollouts. This cable integrates a high-tensile strength messenger wire with a 4 to 12-core single-mode optical unit in a convenient “Figure-8” cross-section.
Whether you are navigating urban spans or rural environments prone to wildlife interference, our Stainless Steel Armored version provides a specialized anti-rodent barrier, ensuring zero downtime and maximum cable longevity.
Key Features & Benefits
-
Integrated Messenger Wire: The self-supporting “Figure-8” design eliminates the need for separate lashing or external support wires, significantly reducing installation labor and costs.
-
Superior Environmental Protection: UV-resistant HDPE outer jacket ensures stability against extreme sunlight, rain, and temperature fluctuations.
-
Anti-Rodent Armoring: Optional corrugated stainless steel tape protects against bird pecking and rodent gnawing—essential for overhead deployments in wooded areas.
-
Low Attenuation & High Bandwidth: Optimized for G.652.D or G.657.A fiber standards, providing low-loss data transmission for high-speed internet services.
-
Compact & Lightweight: Small diameter and high flexibility allow for easy handling and tensioning during aerial installation.
Technical Specifications
| Feature | Specification |
| Fiber Type | Single Mode (SM) G.652D / G.657A1 |
| Core Count | 4, 6, 8, 12 Cores |
| Messenger Wire | Phosphated Steel Wire or Stranded Steel |
| Armoring Type | Stainless Steel Tape (Optional) / Non-Armored |
| Outer Jacket | Black HDPE (UV-Stabilized) |
| Operating Temp | -40°C to +70°C |
| Crush Resistance | 1000N/100mm (Non-armored) |
Applications
-
FTTH Network Distribution: The primary choice for connecting local hubs to residential premises.
-
Overhead Aerial Spans: Ideal for pole-to-pole or pole-to-building installations.
-
Rural Telephony: Robust enough for long-distance outdoor links where maintenance access is limited.
-
Campus Networks: Perfect for linking multiple buildings in a corporate or educational setting.
Looking for a reliable aerial fiber solution? Our 4-12 Core Figure-8 Self-Supporting FTTH Drop Cable offers high-tensile strength and optional stainless steel anti-rodent armoring for superior outdoor durability. Shop SM aerial fiber cables for high-speed telecom distribution.
