24-Core Mini Fiber Optic Splice Closure (FOSC) – Dome Type

unit

#Mini type waterproof #24 core Dome #Fiber Optic #Splice/Joint #Closure

Model Number:12/24/48/72/96 counts

Color:black Material:ABS

Application: #Aerial, Pole underground duct

Fiber Type:12/24/48/72/96 cores

Weight: 2kg

Dimension :215×200(mm)

SKU: ETL-FOSC-DOME-24C-MINI Category: Fiber Optic Products

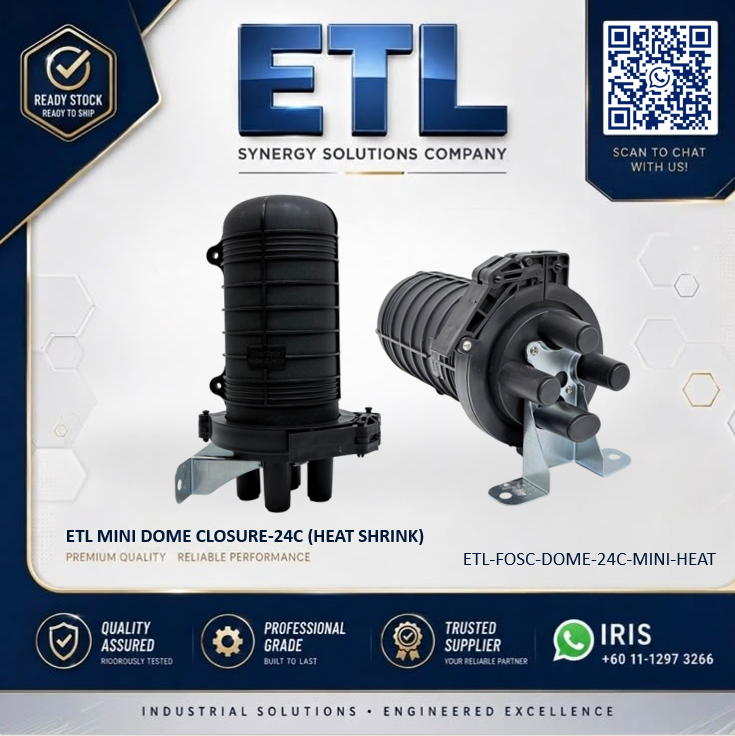

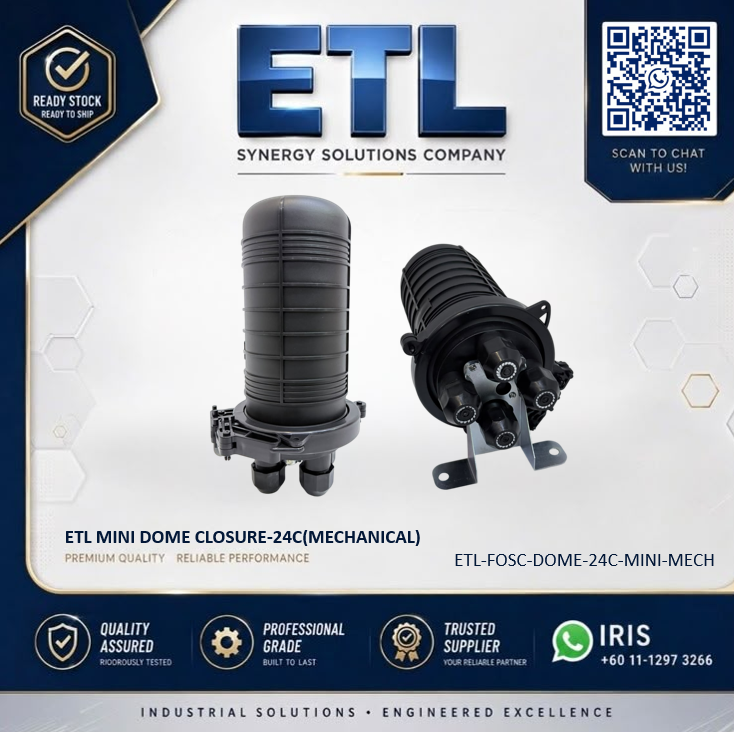

24-Core Mini Fiber Optic Splice Closure (FOSC)

Designed for tight spaces and efficient splice management, this compact/mini Fiber Optic Splice Closure (FOSC) is built to protect optical fiber splices in outdoor aerial, wall-mounted, or underground installations. Ideal for low-to-medium core count deployments, offering both Heat Shrinkable and Mechanical Seal options for fast and reliable waterproofing.

Key Features

24-core fiber capacity
Compact dome-type design
Fiber optic splice protection
Suitable for FTTH networks
Suitable for telecommunications infrastructure
Suitable for outdoor fiber applications
Compact installation footprint
Suitable for fiber optic contractors and installers

Technical Specifications

Feature	Details
Max Capacity	24 Cores
Sealing Method	Heat Shrink / Mechanical Seal
Cable Entry Ports	Multi-round ports + 1 oval port (for uncut cable)
Material	High-impact Polypropylene (PP) / ABS
Application	Aerial, Wall-mount, Underground Duct

Applications

FTTH fiber networks
Telecommunications networks
Outdoor fiber distribution
Fiber optic cable splicing
Access network infrastructure
Building fiber networks
Contractor installations

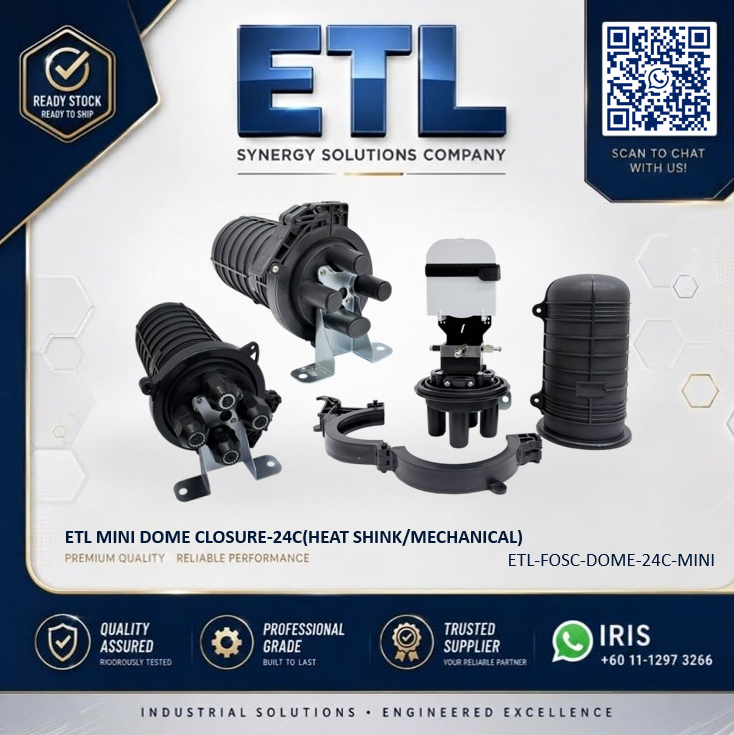

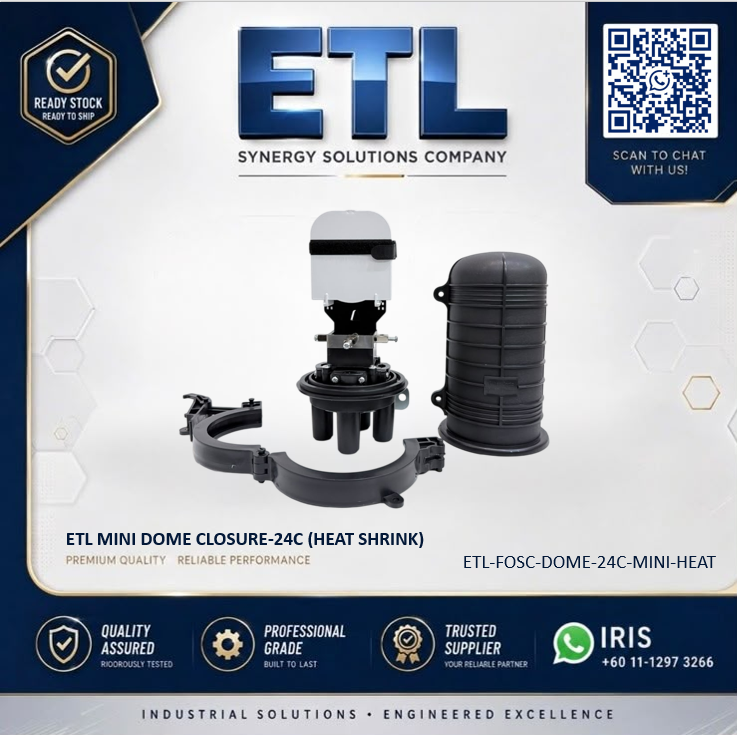

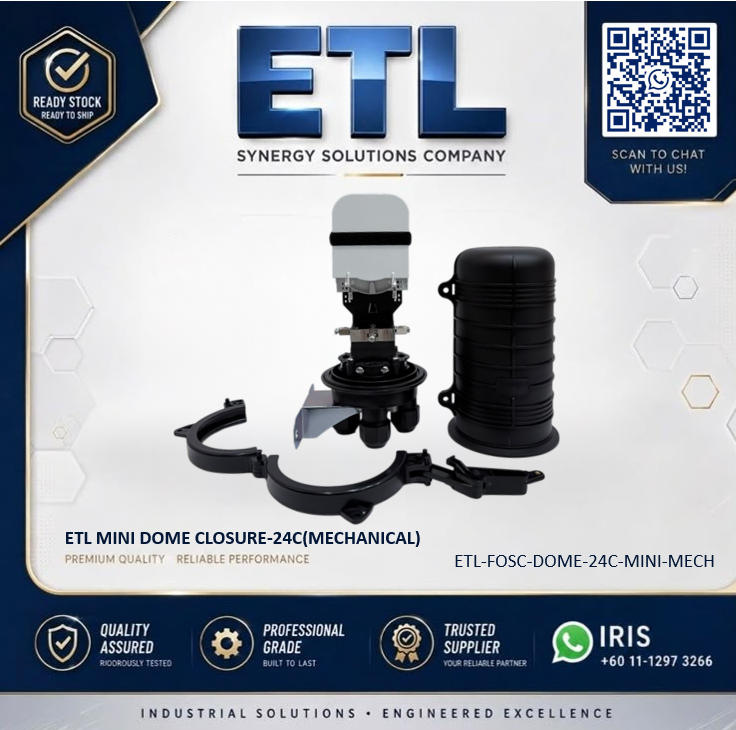

Package Includes (Standard Kit):

1 x Mini Dome Closure (Mechanical or Heat Shrink)

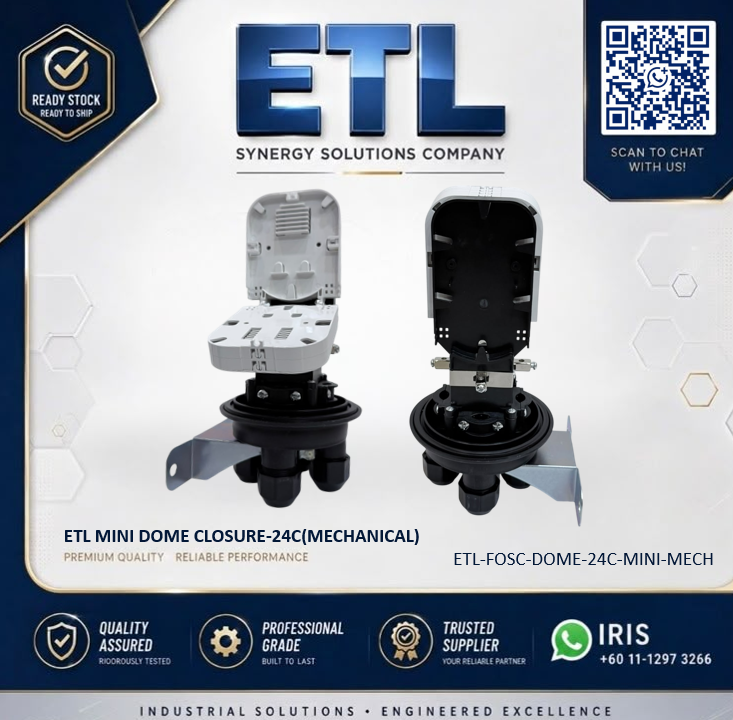

Integrated Splice Trays
Installation Mounting Bracket
Sealing Accessories (Gaskets or Heat Shrink Sleeves)
Fiber Protection Sleeves & Cable Ties

FAQ

What is a 24-core fiber optic splice closure?
A 24-core FOSC is an enclosure designed to protect and organise fiber optic splices for fiber network installations.

How many fibers can this mini FOSC accommodate?
This model is designed for 24-core fiber applications.

What is a dome-type fiber optic splice closure?
A dome-type splice closure uses a rounded enclosure design to house and protect fiber splices and cable connections.

Is this mini FOSC suitable for FTTH?
Yes. It is suitable for fiber optic splicing applications used in FTTH and telecommunications networks.

Why use a mini fiber optic splice closure?
Its compact design is useful where installation space is limited while still requiring protection for fiber splices.

Can ETL supply fiber optic splice closures for projects?
Yes. Contact ETL for bulk requirements, technical specifications, availability and project quotation.

#FiberClosure #MiniDome #48Core #FiberOpticJoint #MechanicalSeal #HeatShrink #WaterproofIP68 #FTTH #NetworkInfrastructure #SpliceKit #FiberSplicing #AerialFiber #Telecommunication

Weight

3 kg

Dimensions

31 × 18 × 20 cm

Sealing Type

Heat Shrink, Mechanical
